The LM3700XCTPX-296/NOPB is a high-performance microprocessor supervisory circuit designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This component is engineered to monitor the power supplies in digital systems, ensuring proper operation through voltage supervision, which is crucial for maintaining system reliability and performance.

Key Features

• Voltage Monitoring: The LM3700XCTPX-296/NOPB provides precise voltage monitoring for 2.93V, 2.63V, and 1.58V power supplies, making it versatile for various applications.
• Reset Timeout: It features an adjustable reset timeout delay, allowing designers to set the appropriate time before the system reset is deasserted after voltage levels are back to normal.
• Manual Reset: A manual reset input is included, offering an additional layer of system control by allowing external triggering of a reset.
• Temperature Range: The device operates over an extended temperature range, making it suitable for industrial applications with varying environmental conditions.
• Power-On Reset: The integrated power-on reset function ensures that the processor starts from a clean state after power-up.

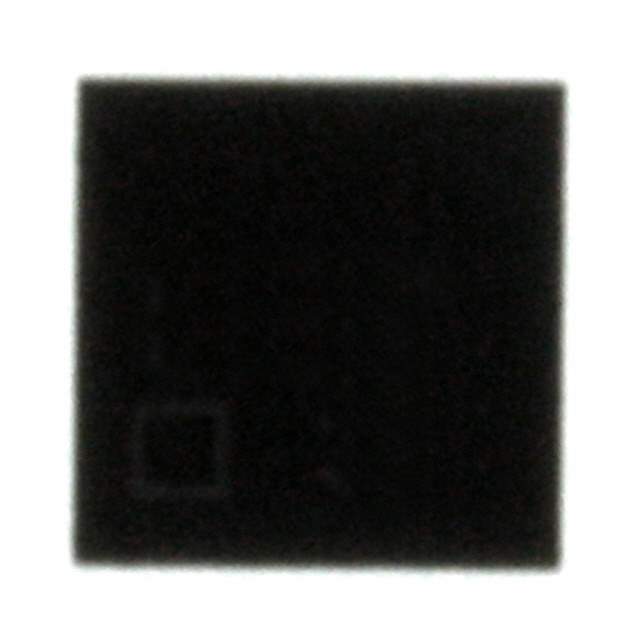

• Small Form Factor: Housed in a compact, low-profile X2SON package, the LM3700XCTPX-296/NOPB saves valuable board space and is ideal for space-constrained applications.

Applications

Due to its robust feature set, the LM3700XCTPX-296/NOPB is well-suited for a wide range of applications, including:

• Portable/Battery-Powered Devices
• Networking Equipment
• Microprocessor/Microcontroller Systems
• Industrial Controls
• Automotive Systems

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LM3700XCTPX-296/NOPB is no exception. It is designed to meet the stringent requirements of the automotive industry, and its 'NOPB' designation indicates that it is a lead-free (RoHS compliant) component, reflecting TI's dedication to environmental responsibility.
