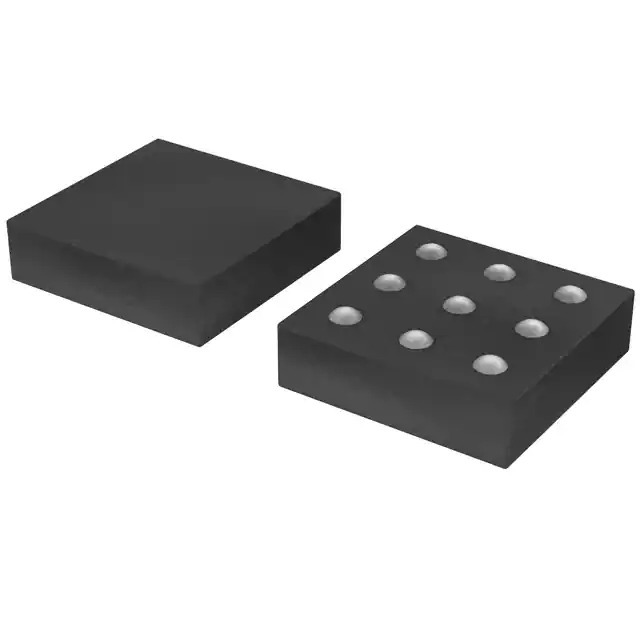

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Audio Amplifiers
Mfr Rohm Semiconductor
Series -
Package Tape & Reel
Product Status Active
Type Class D
Output Type 1-Channel (Mono)
Max Output Power x Channels @ Load 2.5W x 1 @ 4Ohm
Voltage - Supply 2.5V ~ 5.5V
Features Depop, Short-Circuit and Thermal Protection
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Supplier Device Package 9-VCSP50L1 (1.5x1.5)
Package / Case 9-UFBGA, CSPBGA
Base Product Number BD27400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1354238-BD27400GUL-E2
Ultra Librarian 3D Model Ultra Librarian BD27400GUL-E2 CAD Model

Description

The BD27400GUL-E2 is an audio amplifier integrated circuit (IC) from Rohm Semiconductor.

  • Amplifier Type: Class D
  • Package / Case: 9-UFBGA, CSPBGA
  • Features: Depop, Short-Circuit and Thermal Protection
  • Supply Voltage: 2.5V ~ 5.5V
  • Max Output Power x Channels @ Load: 2.5W x 1 @ 4 Ohm
  • Output Type: 1-Channel (Mono)
  • Mounting Type: Surface Mount
  • REACH SVHC: Unaffected
  • ECCN: EAR99
  • Product Status: Active
