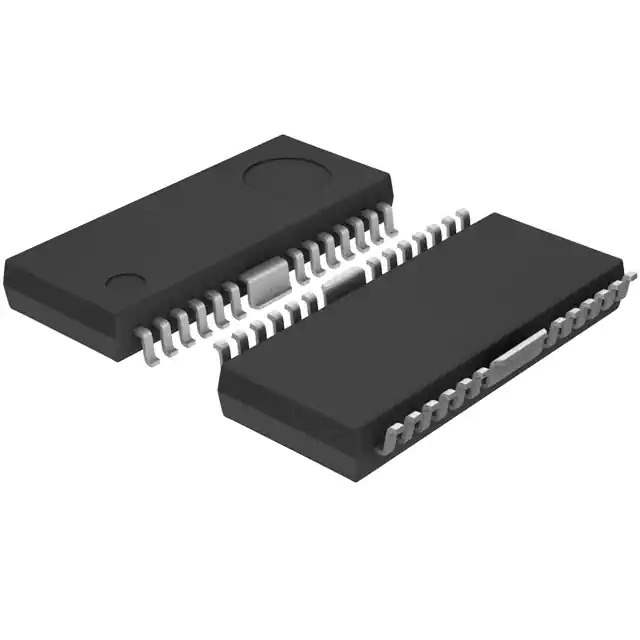

BA6920FP-Y Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tube
Product Status Active
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface On/Off
Technology Bipolar
Applications Media Player
Current - Output 1A
Voltage - Supply 6.5V ~ 34V
Voltage - Load 6.5V ~ 34V
Temperature Range - Operating -30°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs
Supplier Device Package 25-HSOP
Base Product Number BA6920
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 568490-BA6920FP-Y
Ultra Librarian 3D Model Ultra Librarian BA6920FP-Y CAD Model

Description

The BA6920FP-Y is a fully integrated motor driver designed for media player applications.

  • Category: Motor Drivers and Controllers
  • Technology: Bipolar
  • Output Current: Up to 1A
  • Configuration: Half-Bridge
  • Interface: On/Off
  • Voltage Range: 6.5V to 34V
  • Motor Type: Brushed DC
  • Package: 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs
  • Mounting: Surface Mount
  • Operating Temperature: -30°C to 150°C (TJ)
  • Manufacturer: Rohm Semiconductor
  • Status: Active
