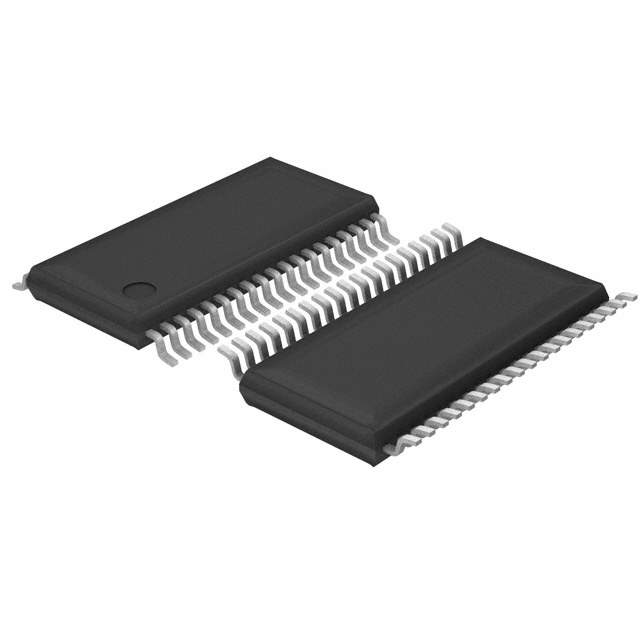

TMS320F280220DAT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features C28x series Microcontroller IC 32-Bit 40MHz 16KB (8K x 16) FLASH 38-TSSOP
Manufacturer Texas Instruments
Series C2000™ C28x Piccolo™
Package Bulk
Core Processor C28x
Core Size 32-Bit
Speed 40MHz
Connectivity I2C, SCI, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 20
Program Memory Size 16KB (8K x 16)
Program Memory Type FLASH
Supply Voltage 1.71V ~ 3.63V
Data Converters A/D 6x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 105°C (TA)
Mounting Surface Mount
Package 38-TSSOP (0.240", 6.10mm Width)
Case / Package 38-TSSOP
Family Name TMS320
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 900469-TMS320F280220DAT
Ultra Librarian 3D Model Ultra Librarian TMS320F280220DAT CAD Model

Description

The TMS320F280220DAT is a 32-bit C28x Piccolo microcontroller IC from Texas Instruments.

  • Series: C2000
  • Speed: 40MHz
  • I/Os: 20
  • Peripherals: Brown-out detect/reset, POR, PWM, and WDT
  • Oscillator Type: Internal
  • Supply Voltage: 1.71V to 3.63V
  • Program Memory Size: 16KB (8K x 16) FLASH
  • Data Converters: A/D 6x12b
  • Mounting: Surface Mountable
  • Package: 38-TSSOP
  • ECCN: 3A991A2
  • REACH: Unaffected
  • Package Quantity: One
  • MSL Level: 2 (1 Year)
  • Popularity: High
  • Supply and Demand: Balance
