Same model may have multiple batches, images only for reference.

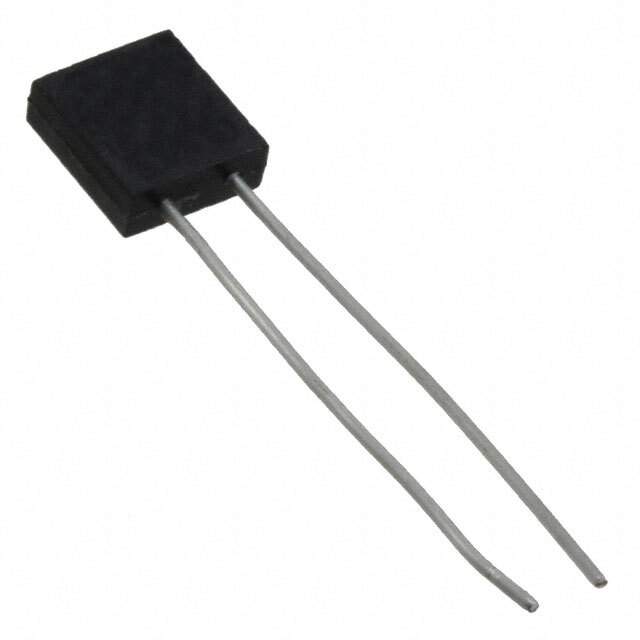

SM10-25KX Real Image
Same model may have multiple batches, images only for reference.

SM10-25KX

Part No SM10-25KX
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 25K OHM 0.01% 0.3W RADIAL / 25 kOhms ±0.01% 0.3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Datasheet
SM10-25KX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Riedon
Series 100/SM/PC Precision
Package Bulk
Resistance 25 kOhms
Tolerance ±0.01%
Power (Watts) 0.3W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Non-Inductive, Safety
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 145°C
Package / Case Radial
Dimension 0.299" L x 0.102" W (7.60mm x 2.60mm)
Height - Seated (Max) 0.344" (8.74mm)
Number of Terminations 2
Other Names 696-1580,SM10-25KX8
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1236272-SM10-25KX
Ultra Librarian 3D Model Ultra Librarian SM10-25KX CAD Model

Description

The Riedon 100/SM/PC Precision series resistor is a wirewound composition resistor that is flame proof, moisture resistant, non-inductive, and safe to use.

  • Tolerance: ±0.01%
  • Temperature Coefficient: ±10ppm/°C
  • Power Rating: 0.3W
  • Number of Terminations: 2
  • Operating Temperature Range: -55°C to 145°C
  • Resistance: 25 kOhms
  • Dimensions: 0.299" L x 0.102" W (7.60mm x 2.60mm)
  • Maximum Seated Height: 0.344" (8.74mm)
  • Standard Package: 25
  • Made in: Germany
  • REACH: Unaffected
  • HTSUS: 8533.21.0080
