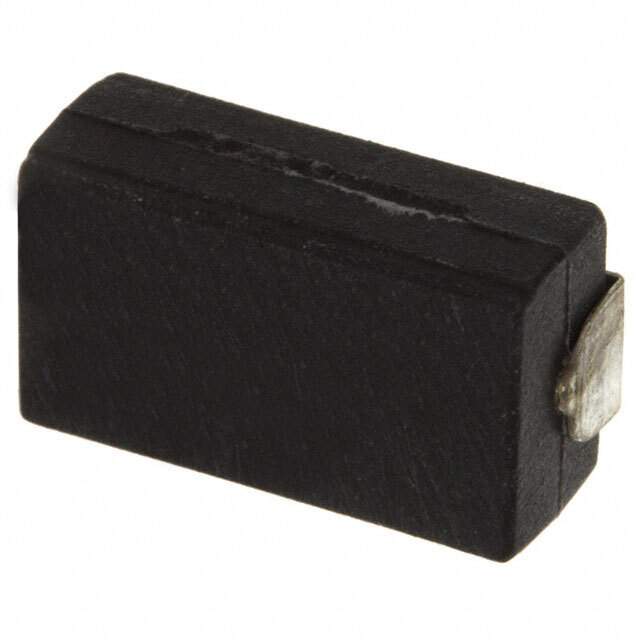

S4-470RJ1 Real Image
Same model may have multiple batches, images only for reference.

S4-470RJ1

Part No S4-470RJ1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 470 OHM 5% 2W 4525 / 470 Ohms ±5% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-470RJ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 470 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4 470 OHM 5%,S-4-470JTR,S-4-470JTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237167-S4-470RJ1
Ultra Librarian 3D Model Ultra Librarian S4-470RJ1 CAD Model

Description

The S-4-470JTR is a wirewound chip resistor from Riedon.

  • Power: 2W
  • Resistance: 470 Ohms
  • Tolerance: ±5%
  • Application: Current Sensing
  • Features: Flame-proof, Moisture-resistant, and Pulse-withstanding
  • Temperature Coefficient: ±20ppm/°C
  • Temperature Range: -55°C to 275°C
  • Package: 4525 J-Lead
  • Packaging: Tape and Reel
  • Height: 0.197 inches (5.00mm)
  • Dimensions: 0.449 inches L x 0.252 inches W (11.40mm x 6.40mm)
  • Failure Rate: -
  • ECCN: EAR99
  • REACH: Affected
  • HTSUS: 8533.21.0080
