Same model may have multiple batches, images only for reference.

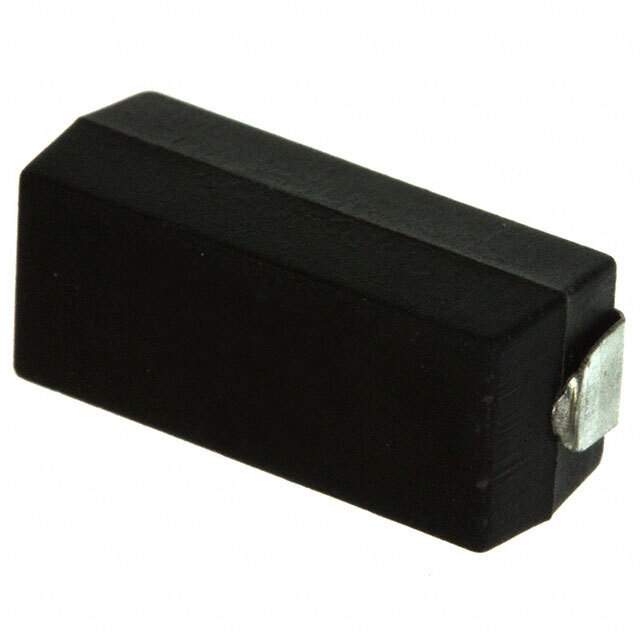

S3-470RF1 Real Image
Same model may have multiple batches, images only for reference.

S3-470RF1

Part No S3-470RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 470 OHM 1% 3W 6327  /  470 Ohms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-470RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 470 Ohms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3-470FTR,696-1231-1,696-1231-2,S-3-470FDKR,S-3-470FDKR,S-3 470 OHM 1%,S3470OHM1,696-1231-6,S-3-470FCT,S-3-470FTR,S-3-470FCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237206-S3-470RF1
Ultra Librarian 3D Model Ultra Librarian S3-470RF1 CAD Model

Description

The Riedon S-3-470FTR, S-3-470FCT, S-3-470FDKR, S-3-470FDKR, S-3-470FTR, S-3 470 OHM 1%, S3470OHM1, 696-1231-6, S-3-470FCT, S-3-470FTR, S-3-470FCT, S-3-470FDKR, S-3-470FDKR, 1237206-S3-470RF1 is a chip resistor that is surface mounted.

  • Series: S series
  • Standard Package: 500
  • Package: Tape and Reel
  • Height: 0.268 inches (seated)
  • Material: Wirewound
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Power: 3W
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Certified
  • Terminations: 2
  • Resistance: 470 Ohms
  • Manufacturer: Riedon
  • Temperature Range: -55°C to 275°C
