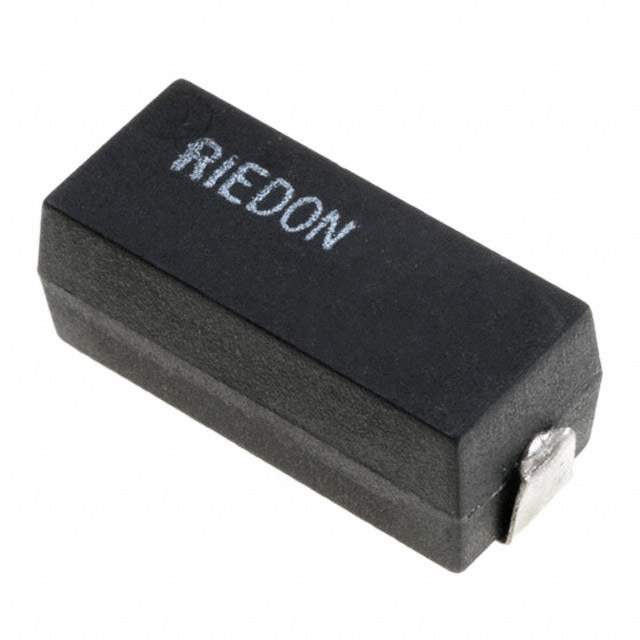

S2-0R05F1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 2615 J-Lead
Dimension 0.260" L x 0.154" W (6.60mm x 3.90mm)
Height - Seated (Max) 0.142" (3.60mm)
Number of Terminations 2
Other Names 696-1197-2,S-2-0.050FTR,696-1197-1,S-2-0.050FCT,S-2 0.050 OHM 1%,S-2-0.050FDKR,S-2-0.050FCT,S-2-0.050FTR,S20050OHM1,696-1197-6,S-2-0.050FDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237205-S2-0R05F1
Ultra Librarian 3D Model Ultra Librarian S2-0R05F1 CAD Model

Description

The Riedon 1237205-S2-0R05F1 is a wirewound chip resistor that belongs to the S series and has a resistance of 50 mOhms.

  • Resistance: 50 mOhms
  • Series: S series
  • Mounting Type: Surface Mount
  • Package / Case: 2615 J-lead
  • Power Rating: 1W
  • Tolerance: ±1%
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
  • Package: Tape and Reel
  • Standard Package: 600
  • Height - Seated (Max): 0.142 inches
  • Temperature Range: -55°C to 275°C
  • Manufacturer: Riedon
