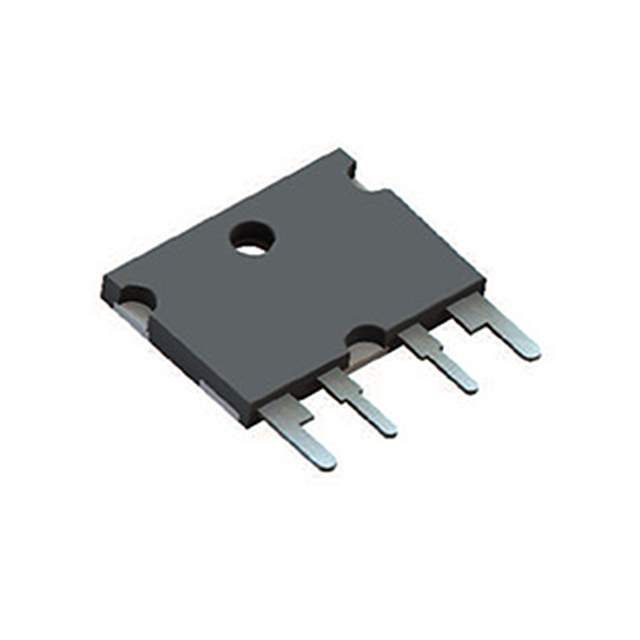

FHR4V-0R001F1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Riedon
Series FHR
Package Tube
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 40W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -40°C ~ 130°C
Package / Case 4-SIP
Supplier Device Package Radial Lead
Size / Dimension 0.878" L x 0.177" W (22.30mm x 4.50mm)
Height - Seated (Max) 0.687" (17.45mm)
Number of Terminations 4
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
California Prop 65 Warning Information
Win Source Part Number 1349363-FHR4V-0R001F1
Ultra Librarian 3D Model Ultra Librarian FHR4V-0R001F1 CAD Model

Description

The FHR series resistor by Riedon is ideal for use in through hole applications.

  • Composition: Metal Foil
  • Resistance: 1 mOhms
  • Application: Current Sensing
  • Power (Watts): 40W
  • Package / Case: 4-SIP, Radial Lead
  • Packaging: Tube
  • Tolerance: ±1%
  • Temperature Coefficient: ±25ppm/°C
  • Height: 0.687"
  • Size / Dimension: 0.878" L x 0.177" W
  • Operating Temperature: -40°C to 130°C
