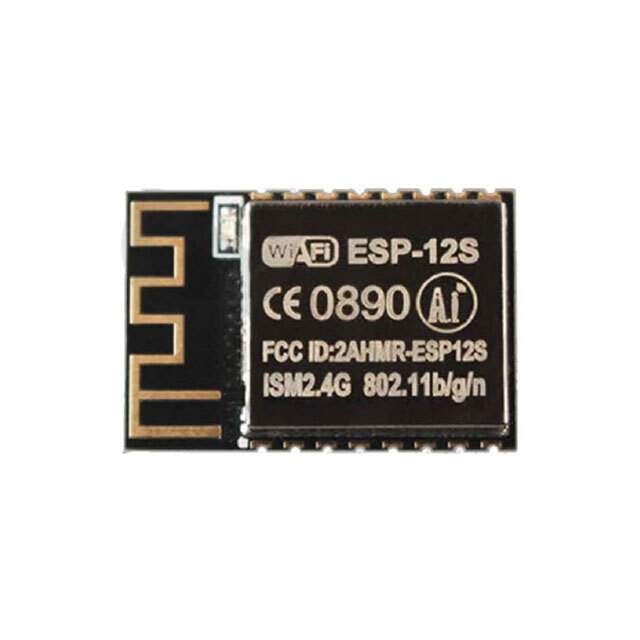

ESP-12S Real Image ESP-12S real image ESP-12S real image23009
ESP-12S Real Image ESP-12S real image ESP-12S real image23009
Same model may have multiple batches, images only for reference.

ESP-12S

Part No ESP-12S
Manufacturer RF Solutions
Catalog RF Transceiver Modules
Description ESP8266 WIFI 802.11B/G/N 160MBIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer RF Solutions
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation 64-QAM, BPSK, CCK
Frequency 2.412GHz ~ 2.484GHz
Data Rate 54Mbps
Power - Output 16dBm
Sensitivity -90dBm
Serial Interfaces ADC, I2C, PWM, SPI, UART
Antenna Type PCB Trace
Supply Voltage (V) 3V ~ 3.6V
Current - Transmitting 11.1mA
Mounting Style SMD
Temperature Range - Operating -20°C ~ 85°C
Manufacturer Package Module
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811600-ESP-12S
Ultra Librarian 3D Model Ultra Librarian ESP-12S CAD Model

Description

The RF Solutions 811600-ESP-12S is a low-power, high-performance WiFi module designed for use in IoT applications manufactured by RF Solutions.

  • Mounting Style: SMD
  • Frequency Range: 2.412GHz ~ 2.484GHz
  • Protocol: 802.11b/g/n
  • Data Transmission Rate: 54Mbps (Max)
  • Antenna Type: PCB Trace
  • Power Output: 16dBm
  • Sensitivity: -90dBm
  • Serial Interfaces: ADC, I2C, PWM, SPI, UART
  • Transmitting Current: 11.1mA
  • Temperature Range: -20°C ~ 85°C
  • Package: Module
  • Manufacturer Pack Quantity: 1
