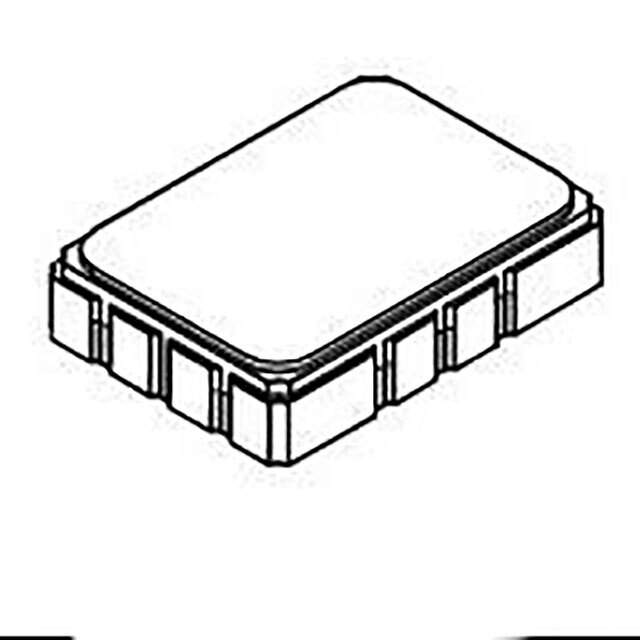

SF2063A Real Image
Same model may have multiple batches, images only for reference.

SF2063A

Part No SF2063A
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2063A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 156MHz
Bandwidth 10MHz
Insertion Loss 15.5dB
Applications General Purpose
Mounting SMD (SMT)
Package / Case 12-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Dimension 0.524" L x 0.256" W (13.31mm x 6.50mm)
Base Product Number SF2063
Other Names 2410-SF2063ATR2,2410-SF2063ATR,2410-SF2063A
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275851-SF2063A
Ultra Librarian 3D Model Ultra Librarian SF2063A CAD Model

Description

The SF2063A from RFMi is a SAW filter that belongs to the category of Filters>SAW Filters.

  • Win Source Part Number: 1275851
  • Packaging: tape & reel (TR), tape & reel (TR), and bag packaging
  • Suitable for: use in general-purpose applications
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Insertion Loss: 15.5dB
  • Height (max): 0.079" (2.00mm)
  • Bandwidth: 10MHz
  • Frequency-Center: 156MHz
  • Package/Case: 12-SMD, No Lead
  • Dimension: 0.524" L x 0.256" W (13.31mm x 6.50mm)
  • ECCN: EAR99
  • HTSUS: 8541.60.0060
  • Other Names: 2410-SF2063ATR2, 2410-SF2063ATR, and 2410-SF2063A
  • Base Product Number: SF2063
