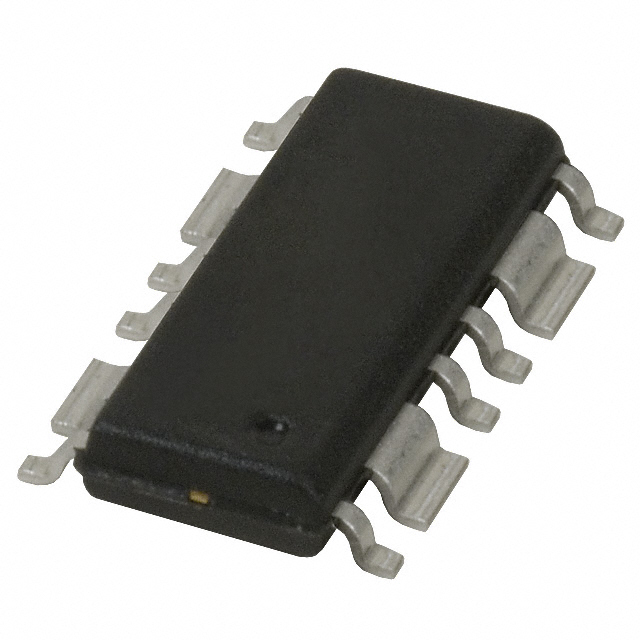

Same model may have multiple batches, images only for reference.
RF2317TR7 RF Micro Devices
Same model may have multiple batches, images only for reference.

RF2317TR7

Part No RF2317TR7
Manufacturer RF Micro Devices
Catalog RF Amplifiers
Description IC AMP HBT GAAS CATV CJ2BAT0
Datasheet
RF2317TR7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RFMD
Packaging Reel - TR
Status Active
Frequency 0Hz to 3GHz
P1dB 22dBm (158.5mW)
Gain 13.5dB to 15dB
Noise Figure 4.9dB
RF Type ISM, Broadcast Television
Supply Voltage - Operating 9 V to 12 V
Operating Supply Current 100mA to 200mA
Test Frequency 900MHz
Case / Package CJ2BAT0
Win Source Part Number 1092063-RF2317TR7
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RF2317TR7 CAD Model

Description

The RFMD RF2317TR7 is a high-performance RF amplifier designed for use in RF/IF and RFID applications.

  • Frequency Range: 0Hz to 3GHz
  • Gain: 13.5dB to 15dB
  • Noise Figure: 4.9dB
  • P1dB: 22dBm (158.5mW)
  • Package: CJ2BAT0
  • Supply Voltage: 9 V to 12 V
  • Operating Supply Current: 100mA to 200mA
