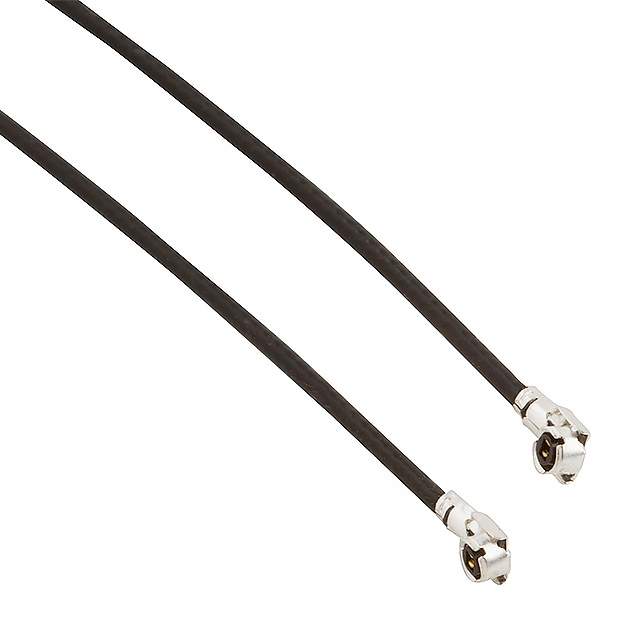

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style AMMC to AMMC
1st Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 7.874" (200.00mm)
Cable Type 0.81mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Color Black
Features Shielded
Temperature Range - Operating -40°C to 90°C
Win Source Part Number 182735-RF2312
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2312 CAD Model

Description

The Amphenol RF Division 182735-RF2312 is a female-to-female shielded coaxial cable assembly that has a length of 7.874 inches or 200 millimeters.

  • Impedance: 50-ohm
  • Maximum Input Frequency: 6GHz
  • Style: AMMC to AMMC
  • Sockets: Ultra-miniature coaxial plug female sockets that are right-angled
  • Popularity: Medium-popularity
  • Supply and Demand Status: Limited
