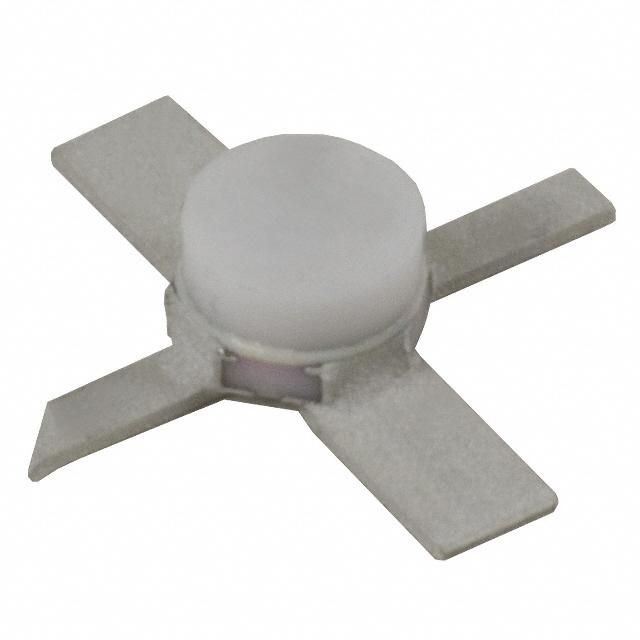

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RF Micro Devices
Packaging Reel - TR
Status Active
Frequency 0Hz to 12GHz
P1dB 13.8dBm (24mW) @ 6GHz
Gain 11dB to 13dB
Noise Figure 5.1dB @ 3GHz
RF Type LMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
Supply Voltage - Operating 3.6 V to 4.2 V
Operating Supply Current 50mA
Case / Package 4-Micro-X
Win Source Part Number 249810-NBB-300
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBB-300 CAD Model

Description

The RF Micro Devices NBB-300 is a reel - TR packaged electronic component with a frequency range of 0Hz to 12GHz.

  • Manufacturer: RF Micro Devices
  • Package: Reel - TR
  • Frequency Range: 0Hz to 12GHz
  • Gain: 11dB to 13dB
  • Noise Figure: 5.1dB @ 3GHz
  • P1dB: 13.8dBm (24mW) @ 6GHz
  • RF Type: LMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
  • Supply and Demand Status: Limited
