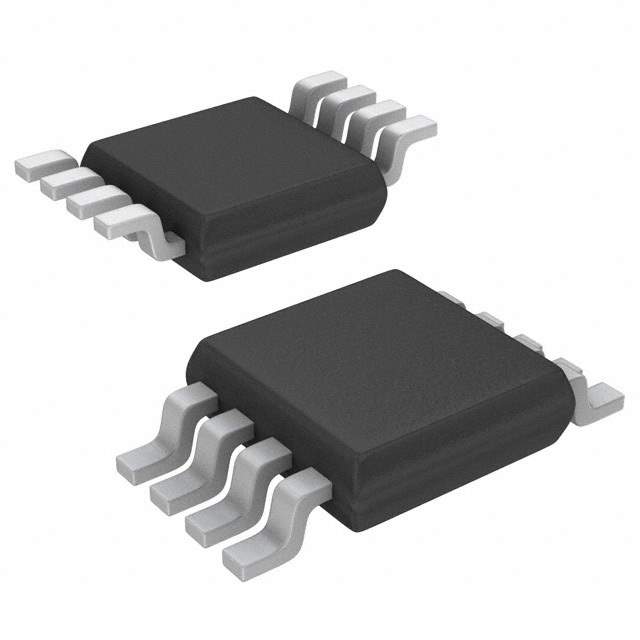

The X9313UMZ-3T1 is a digitally controlled potentiometer (XDCP) manufactured by Renesas Electronics America. It is designed for applications requiring precise and adjustable resistance settings. This device integrates a resistor array, wiper switches, control logic, and non-volatile memory into a single chip, offering a compact and versatile solution for electronic trimming and calibration.

Applications

• Electronic trimming: Adjusting component values in analog circuits for optimal performance.
• Calibration: Fine-tuning sensor outputs and other analog signals to improve accuracy.
• Volume control: Implementing digital volume control in audio equipment.
• Contrast and brightness control: Adjusting display settings in monitors and other display devices.
• Gain control: Varying the gain of amplifiers and other signal processing circuits.

Features

• Digital control: Resistance value is controlled through a digital interface (typically SPI or I2C).
• Non-volatile memory: Stores the wiper position, retaining the resistance setting even when power is removed.
• Multiple wiper positions: Offers a wide range of resistance values and fine adjustment resolution.
• Low power consumption: Designed for energy-efficient operation in battery-powered and other low-power applications.
• Small form factor: Available in compact surface-mount packages for space-constrained designs.

Benefits

• Precise adjustment: Provides precise and repeatable resistance settings, improving circuit performance.
• Remote control: Allows for remote adjustment of resistance values, simplifying system calibration and maintenance.
• Automated calibration: Enables automated calibration procedures, reducing manufacturing costs and improving product quality.
• Design flexibility: Offers a versatile solution for a wide range of analog circuit applications.
• Reduced component count: Integrates multiple functions into a single chip, reducing board space and component costs.

Additional Details

The X9313UMZ-3T1 typically features a resistance range of 10 kΩ or 100 kΩ, with 32 or 64 wiper positions, providing fine adjustment resolution. It operates on a single supply voltage and communicates with a microcontroller or other digital device through a serial interface. The device's non-volatile memory ensures that the resistance setting is retained even after power is removed, eliminating the need for recalibration. This digital potentiometer is an essential component for applications requiring precise and adjustable resistance values, offering improved performance and design flexibility. It is designed to be used in various applications that requires trimming of circuits. The value is then stored, making it retainable through power cycles.
