R5F564MFCDBG#21
Same model may have multiple batches, images only for reference.

R5F564MFCDBG#21

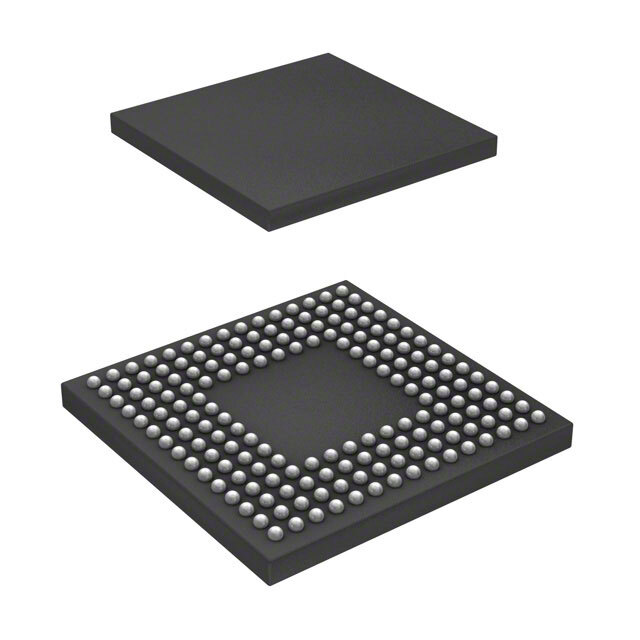

Part No R5F564MFCDBG#21
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 2MB FLASH 176LFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 11 Weeks
Features RXv2 series Microcontroller IC 32-Bit 120MHz 2MB (2M x 8) FLASH 176-LFBGA (13x13)
Manufacturer Renesas Electronics America
Series RX600
Package Tray
Core Processor RXv2
Core Size 32-Bit
Speed 120MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 127
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
Supply Voltage 2.7V ~ 3.6V
Data Converters A/D 29x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 176-LFBGA
Case / Package 176-LFBGA (13x13)
Family Name R5F564
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 152
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891085-R5F564MFCDBG#21
Ultra Librarian 3D Model Ultra Librarian R5F564MFCDBG#21 CAD Model

Description

The Renesas RXv2 series microcontroller IC is a 32-bit processor with a speed of 120MHz and 2MB (2M x 8) FLASH memory.

  • Core Processor: RXv2
  • Package: 176-LFBGA
  • Connectivity: CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, and USB
  • Peripherals: DMA, LVD, POR, PWM, and WDT
  • Program Memory Size: 2MB (2M x 8) FLASH
  • EEPROM Size: 64K x 8
  • Category: Integrated Circuits (ICs)
  • Supply Voltage: 2.7V ~ 3.6V
  • Market Demand: High
  • Supply: Limited
