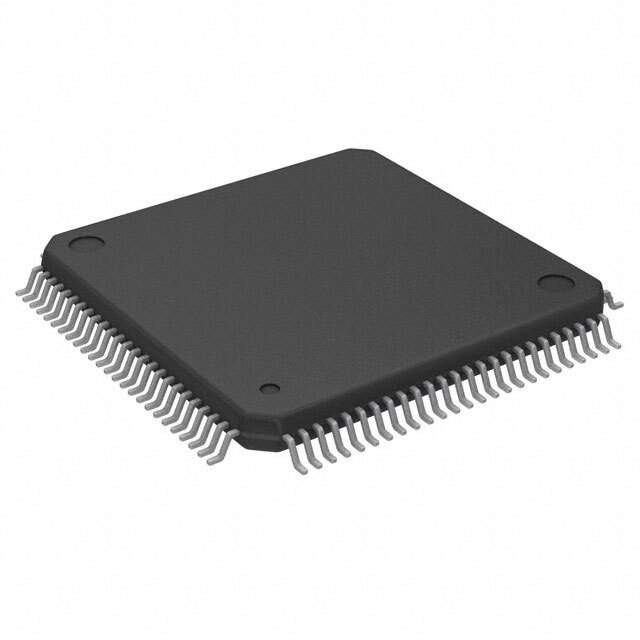

R5F52306ADFP#30 Real Image
Same model may have multiple batches, images only for reference.

R5F52306ADFP#30

Part No R5F52306ADFP#30
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 256KB FLSH 100LFQFP / RXv2 series Microcontroller IC 32-Bit Single-Core 54MHz 256KB (256K x 8) FLASH 100-LFQFP (14x14)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX200
Package Tray
Core Processor RXv2
Core Size 32-Bit Single-Core
Speed 54MHz
Connectivity EBI/EMI, I²C, IrDA, SCI, SPI, SSI
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 83
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 8K x 8
RAM Size 32K x 8
Supply Voltage - Operating 1.8V ~ 5.5V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 100-LQFP
Supplier Device Package 100-LFQFP (14x14)
Base Product Number R5F52306
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names -1161-R5F52306ADFP#30
Standard Package 90
Win Source Part Number 996925-R5F52306ADFP#30
Ultra Librarian 3D Model Ultra Librarian R5F52306ADFP#30 CAD Model

Description

The R5F52306ADFP#30 is an embedded microcontroller from Renesas Electronics America Inc.

  • Series: RX200
  • Core Processor: RXv2
  • Speed: 54MHz
  • Core Size: 32-bit single-core
  • Package Type: LQFP
  • Standard Packages: 90
  • Mounting Type: SMD
  • Connectivity: EBI/EMI, I²C, IrDA, SCI, SPI, and SSI
  • Peripherals: DMA, LVD, POR, PWM, and WDT
  • I/O: 83
  • Program Memory Size: 256KB
  • Program Memory Type: FLASH
  • EEPROM Size: 8K x 8
  • RAM Size: 32K x 8
  • Data Converters: A/D 24x12b and D/A 2x12b
  • Oscillator Type: Internal
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 1.8V to 5.5V
  • ECCN: 3A991A2
  • HTSUS: 8542.31.0001
  • Also Known As: -1161-R5F52306ADFP#30
  • Base Product Number: R5F52306
