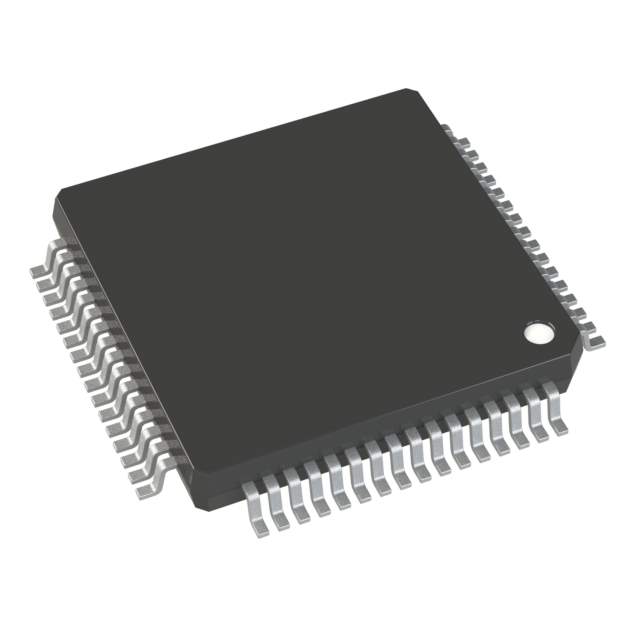

R5F52305ADFM#10 Real Image
Same model may have multiple batches, images only for reference.

R5F52305ADFM#10

Part No R5F52305ADFM#10
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 128KB FLASH 64LFQFP / RXv2 series Microcontroller IC 32-Bit Single-Core 54MHz 128KB (128K x 8) FLASH 64-LFQFP (10x10)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX200
Package Tray
Core Processor RXv2
Core Size 32-Bit Single-Core
Speed 54MHz
Connectivity I²C, IrDA, SCI, SPI, SSI
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 47
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size 8K x 8
RAM Size 32K x 8
Supply Voltage - Operating 1.8V ~ 5.5V
Data Converters A/D 12x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-LQFP
Supplier Device Package 64-LFQFP (10x10)
Base Product Number R5F52305
Other Names 559-R5F52305ADFM#10
Standard Package 1,280
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1263626-R5F52305ADFM#10
Ultra Librarian 3D Model Ultra Librarian R5F52305ADFM#10 CAD Model

Description

The R5F52305ADFM#10 is a microcontroller designed for use in embedded systems.

  • Core Processor: RXv2
  • Speed: 54MHz
  • Package: tray
  • Standard Package: 1,280
  • Core Size: 32-bit single-core
  • Connectivity: I²C, IrDA, SCI, SPI, SSI
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • I/O: 47
  • Program Memory Size: 128KB (128K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 8K x 8
  • RAM Size: 32K x 8
  • Data Converters: A/D 12x12b; D/A 2x12b
  • Oscillator Type: internal
  • Package/Case: 64-LQFP
  • Operating Temperature Range: from -40°C to 85°C (TA)
  • Supply Voltage: from 1.8V to 5.5V
  • MSL Level: 3 (168 Hours)
  • REACH: unaffected
  • HTSUS code: 8542.31.0001
  • Manufacturer: Renesas Electronics America Inc
