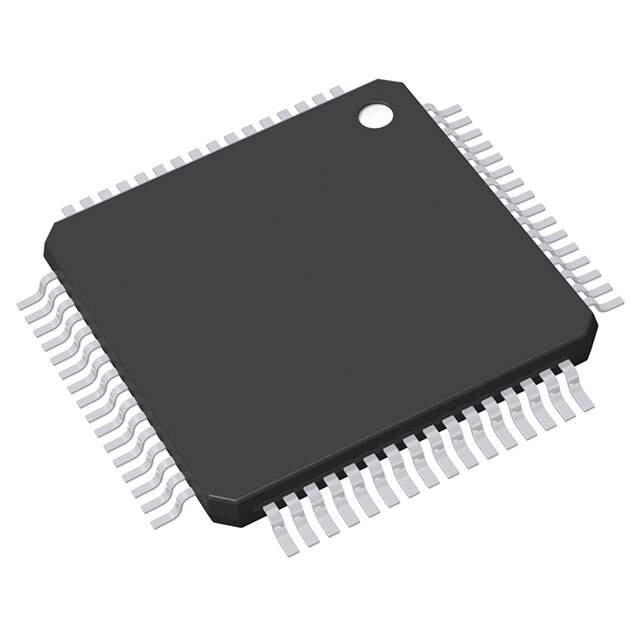

R5F2136CSDFP#30 Real Image
Same model may have multiple batches, images only for reference.

R5F2136CSDFP#30

Part No R5F2136CSDFP#30
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 64LFQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features R8C series Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 64-LFQFP (10x10)
Manufacturer Renesas Electronics America
Series R8C/3x/36T-A
Package Tray
Core Processor R8C
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Peripherals POR, PWM, Voltage Detect, WDT
Number of I/O 59
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 12x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 64-LQFP
Case / Package 64-LFQFP (10x10)
Family Name R5F2136
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 160
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931432-R5F2136CSDFP#30
Ultra Librarian 3D Model Ultra Librarian R5F2136CSDFP#30 CAD Model

Description

The Renesas Electronics America R5F2136CSDFP#30 is an R8C series microcontroller IC that comes in a 16-bit 20MHz 128KB (128K x 8) FLASH 64-LFQFP (10x10) package suitable for surface mounting.

  • Core Processor: R8C
  • Core Size: 16-bit
  • Connectivity: I2C, LINbus, SIO, SSU, UART/USART
  • Peripherals: POR, PWM, voltage detect, and WDT
  • I/O: 59
  • Program Memory Size: 128KB (128K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • Data Converters: A/D 12x10b
  • Oscillator Type: Internal
  • Supply Voltage: 1.8V to 5.5V
  • Family Name: R5F2136
  • Popularity: High
  • Supply and Demand: Balance
  • Package Units: 160
  • MSL Level: 3 (168 hours)
  • ECCN: EAR99
  • REACH: Unaffected
  • Category: Integrated Circuits (ICs)
