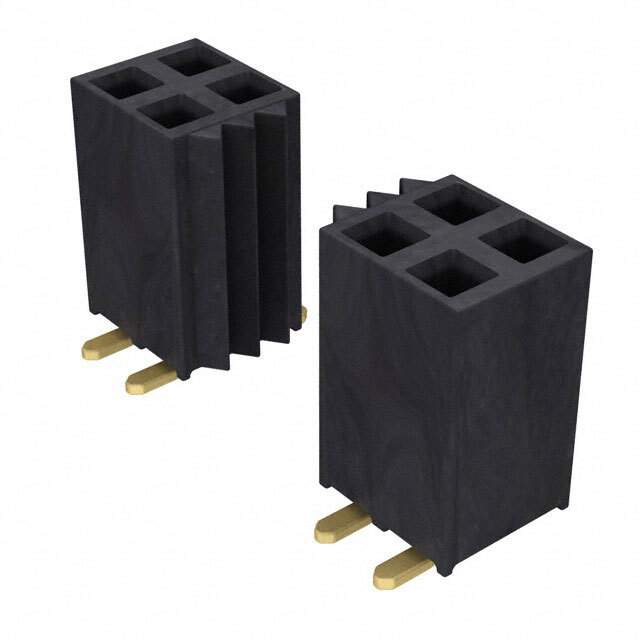

SSW-105-22-G-D-VS Real Image
Same model may have multiple batches, images only for reference.

SSW-105-22-G-D-VS

Part No SSW-105-22-G-D-VS
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-105-22-G-D-VS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSW-105
Other Names SSW-105-22-G-D-VS,SAM11937
Standard Package 42
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287981-SSW-105-22-G-D-VS
Ultra Librarian 3D Model Ultra Librarian SSW-105-22-G-D-VS CAD Model

Description

The SSW-105-22-G-D-VS is a rectangular connector from Samtec Inc. that comes in a tube package.

  • Win Source Part Number: 1287981
  • Category: Connectors, Interconnects
  • Series: SSW
  • Positions: 10
  • Contact Type: forked
  • Connector Type: receptacle
  • Positions Loaded: all
  • Rows: 2
  • Termination Type: solder
  • Fastening Type: push-pull
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: gold @ 20.0µin (0.51µm)
  • Contact Finish-Post: gold @ 3.00µin (0.076µm)
  • Insulation Height: 0.335" (8.51mm)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Current Rating: 4.7A per contact
  • HTSUS: 8536.69.4040
