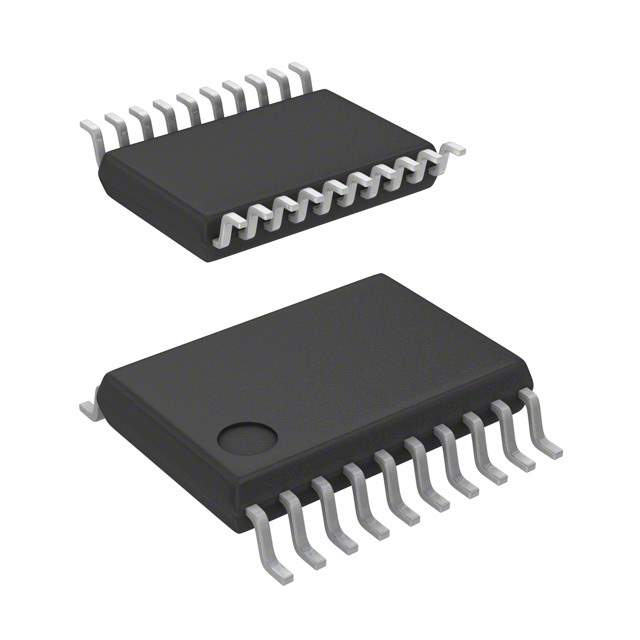

R5F21154SP#U0 Real Image
Same model may have multiple batches, images only for reference.

R5F21154SP#U0

Part No R5F21154SP#U0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 20LSSOP / R8C R8C/1x/15 Microcontroller IC 16-Bit 20MHz 16KB (16K x 8) FLASH 20-LSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series R8C/1x/15
Package Tray
Product Status Obsolete
Core Processor R8C
Core Size 16-Bit
Speed 20MHz
Connectivity SIO, SSU, UART/USART
Peripherals LED, POR, Voltage Detect, WDT
Number of I/O 13
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 4x10b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-LSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-LSSOP
Base Product Number R5F21154
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1345351-R5F21154SP#U0
Ultra Librarian 3D Model Ultra Librarian R5F21154SP#U0 CAD Model

Description

The R5F21154SP#U0 is a 16-bit microcontroller from the R8C/1x/15 series, suitable for embedded applications.

  • Speed: 20MHz
  • Program Memory Size: 16KB
  • RAM Size: 1K x 8
  • Data Converters: A/D 4x10b
  • Oscillator: Internal
  • Connectivity: SIO, SSU, and UART/USART
  • I/O Pins: 13
  • Peripherals: LED, POR, Voltage Detect, and WDT
  • Package: 20-LSSOP
  • Operating Temperature Range: -20°C to 85°C (TA)
  • Voltage Supply Range: 2.7V to 5.5V
  • REACH: Affected
  • Application: Automotive
