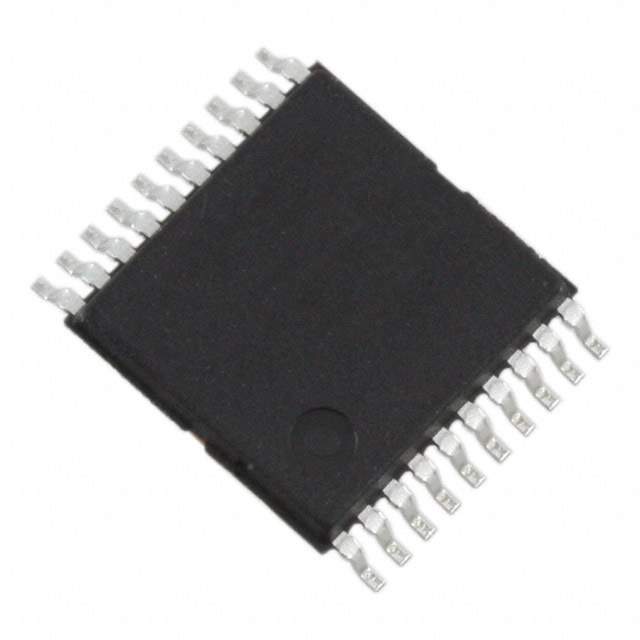

R5F1096AJSP#X0 Real Image
Same model may have multiple batches, images only for reference.

R5F1096AJSP#X0

Part No R5F1096AJSP#X0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 20LSSOP / RL78 series Microcontroller IC 16-Bit 32MHz 16KB (16K x 8) FLASH 20-LSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series Automotive, AEC-Q100, RL78/F12
Package Tape & Reel (TR)
Product Status Not For New Designs
Core Processor RL78
Core Size 16-Bit
Speed 32MHz
Connectivity CSI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 13
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 1K x 8
Supply Voltage - Operating 1.6V ~ 5.5V
Data Converters A/D 4x8/10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 20-LSSOP (0.240", 6.10mm Width)
Supplier Device Package 20-LSSOP
Base Product Number R5F1096
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 559-R5F1096AJSP#X0TR
Standard Package 2,500
Win Source Part Number 968624-R5F1096AJSP#X0
Ultra Librarian 3D Model Ultra Librarian R5F1096AJSP#X0 CAD Model

Description

The Renesas Electronics America R5F1096AJSP#X0 is an embedded microcontroller that is part of the RL78/F12 series.

  • Applications: Automotive applications, including engine control systems and body control modules.
  • CPU Core: 16-bit RL78
  • Flash Memory: 16KB
  • EEPROM: 4KB
  • Interfaces: CSI, I2C, and UART
  • Converters: ADC and PWM
  • Power Consumption: Low
  • Performance: High
