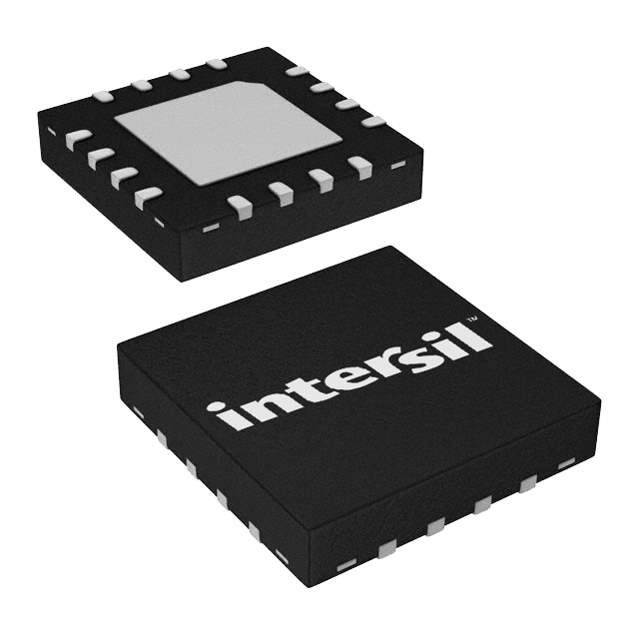

ISL97684IRTZ Real Image
Same model may have multiple batches, images only for reference.

ISL97684IRTZ

Part No ISL97684IRTZ
Manufacturer Renesas Electronics America
Catalog PMIC - LED Drivers
Description IC LED DRV RGLTR PWM 50MA 16TQFN / LED Driver IC 4 Output DC DC Regulator Step-Up (Boost) PWM Dimming 50mA 16-TQFN (3x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr Renesas Electronics America Inc
Package Tube
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 4
Voltage - Supply (Min) 4V
Voltage - Supply (Max) 26.5V
Voltage - Output 45V
Current - Output / Channel 50mA
Frequency 600kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 16-WFQFN Exposed Pad
Supplier Device Package 16-TQFN (3x3)
Base Product Number ISL97684
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names -ISL97684IRTZ
Standard Package 100
Win Source Part Number 1065969-ISL97684IRTZ
Ultra Librarian 3D Model Ultra Librarian ISL97684IRTZ CAD Model

Description

The Renesas Electronics America ISL97684IRTZ is an integrated circuit that belongs to the category of PMIC - LED Drivers.

  • Category: PMIC - LED Drivers
  • Application: Backlight
  • Package: Tube
  • Number of Outputs: 4
  • Current per Channel: 50mA
  • Voltage Output: 45V
  • Package Type: SMD (SMT)
  • RoHS Compliant: Yes
  • ECCN: EAR99
