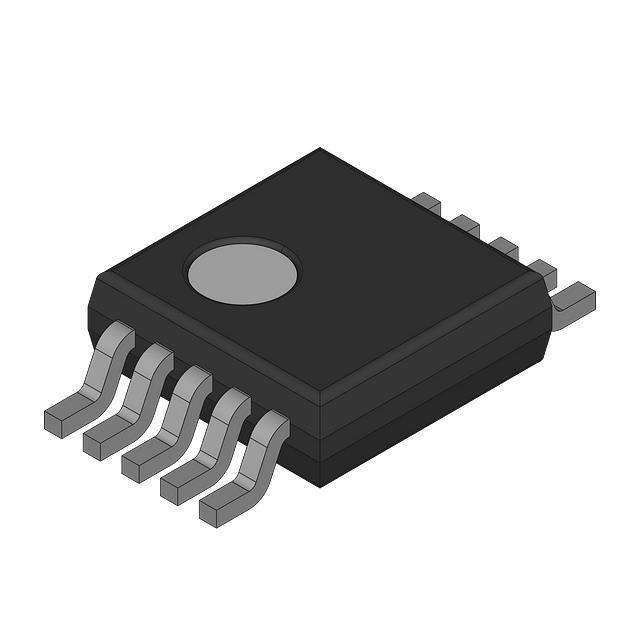

ISL84684IUZ Real Image
Same model may have multiple batches, images only for reference.

ISL84684IUZ

Part No ISL84684IUZ
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Ultra Low ON-Resistance, Low Voltage, Single Supply, Dual SPDT Analog Switch | IC SWITCH DUAL SPDT 10MSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America Inc.
Packaging Tube
Switch Circuit SPDT
On-State Resistance (Maximum) 500mOhm
Channel-to-Channel Matching (ΔRon) 55mOhm
Supply Voltage , Single (V+) 1.65V ~ 3.6V
Switch Time (Ton, Toff) (Maximum) 50ns, 27ns
Charge Injection 94pC
Channel Capacitance (CS(off), CD(off)) 65pF
Current - Leakage (IS(off)) (Maximum) 4nA
Crosstalk -85dB at 100kHz
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 10-TFSOP, 10-MSOP
Supplier Device Package 10-MSOP
Family Part Number ISL84684
Manufacturer Pack Quantity 980
MSL Level 2 (1 Year)
Win Source Part Number 1190309-ISL84684IUZ
Manufacturer Homepage www.intersil.com/cda/home
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ISL84684IUZ CAD Model

Description

The ISL84684IUZ is a SPDT switch circuit with a charge injection of 94pC and crosstalk of -85dB @ 100kHz. It is from Renesas Electronics America Inc.

  • Channel-to-Channel Matching: 55mOhm
  • Channel Capacitance: 65pF
  • Device Category: Integrated Circuits
  • Supplier Device Package: 10-MSOP
  • Operating Temperature Range: -40°C ~ 85°C
  • Supply and Demand Status: Sufficient
