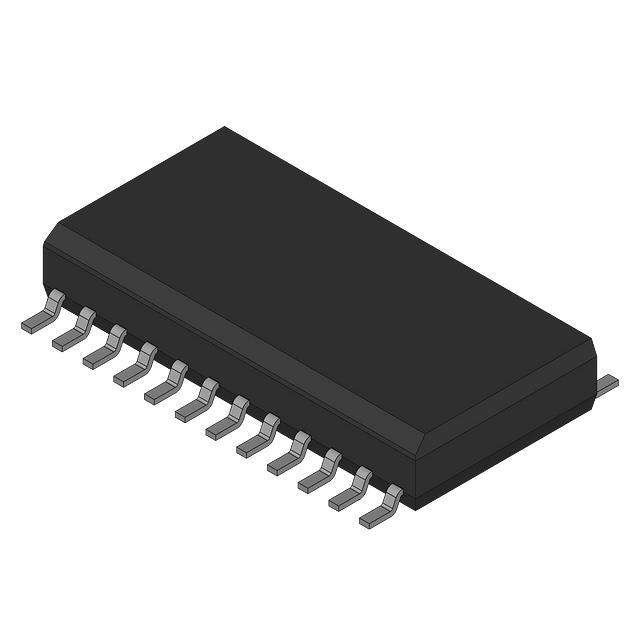

HIP4086AB

Name: HIP4086AB
Brand: Renesas Electronics America
SKU: 598054
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIP4086AB
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	80V, 0.5A Three Phase Driver \| IC DRIVER 3-PHASE FET 24-SOIC
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Renesas Electronics America Inc.
Packaging	Tube
Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	3-Phase
Number of Drivers	6
Gate Type	N-Channel MOSFET
Supply Voltage (V)	7V ~ 15V
Logic Voltage - VIL, VIH	1V, 2.5V
Current - Peak Output (Source, Sink)	500mA, 500mA
Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	95V
Rise / Fall Time	20ns, 10ns
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	SMD
Manufacturer Package	24-SOIC
Supplier Device Package	24-SOIC
Family Part Number	HIP4086
Manufacturer Pack Quantity	30
MSL Level	1 (Unlimited)
Win Source Part Number	1180742-HIP4086AB
Manufacturer Homepage	www.intersil.com/cda/home
Popularity	Medium
Supply and Demand Status	Sufficient
Application Field	Used in Industrial, Automotive, Motor Drive & Control
Ultra Librarian 3D Model	Ultra Librarian HIP4086AB CAD Model

Alternative Products

Description

The Renesas Electronics America Inc. 1180742-HIP4086AB is an obsolete integrated circuit that is currently sufficient in terms of supply and demand status.

Channel Type: 3-Phase
Input Type: Inverting and Non-Inverting
Driven Configuration: Half-Bridge
Gate Type: N-Channel MOSFET
Logic Voltage - VIL, VIH: 1V, 2.5V
Current - Peak Output (Source, Sink): 500mA, 500mA
High Side Voltage - Max (Bootstrap): 95V
Supplier Device Package: 24-SOIC
