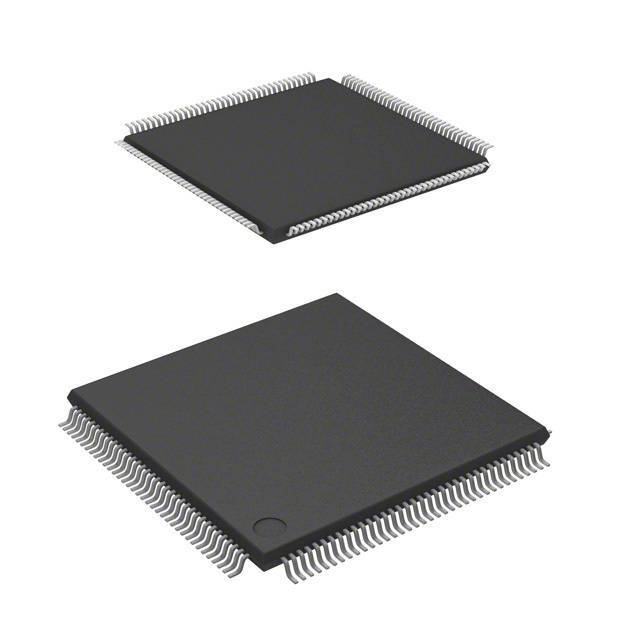

DF2166VT33V Renesas Electronics America
Same model may have multiple batches, images only for reference.

DF2166VT33V

Part No DF2166VT33V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 512KB FLASH 144TQFP / MCU 16-bit H8S/2000 CISC 512KB Flash 3.3V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8S/2100
Packaging Tray
Core Processor H8S/2000
Core Size 16-Bit
Speed 33MHz
Connectivity I2C, IrDA, LPC, SCI, SmartCard
Peripherals POR, PWM, WDT
Number of I/O 106
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 40K x 8
Supply Voltage 3 V ~ 3.6 V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type External
Operating Temperature Range -20°C ~ 75°C (TA)
Package 144-TQFP
Manufacturer Package 144-TQFP (16x16)
Win Source Part Number 772580-DF2166VT33V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 90
Family Name DF2166VT3
Introduction Date August 22, 2003
ECCN 3A991
Halogen Free Compliant
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian DF2166VT33V CAD Model

Description

The Renesas Electronics America H8 H8S/2100 series is a 16-bit core processor with a speed of 33MHz.

  • Package: 144-TQFP
  • Program Memory Size: 512KB (512K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 40K x 8
  • Data Converters: A/D 8x10b, D/A 2x8b
  • Connectivity: I2C, IrDA, LPC, SCI, SmartCard
  • Peripherals: POR, PWM, WDT
  • Number of I/O: 106
  • Operating Temperature: -20°C ~ 75°C (TA)
  • Supply Voltage: 3 V ~ 3.6 V
  • Standards Compliance: Halogen-free
  • Estimated EOL Date: 2020
  • Popularity: Medium
