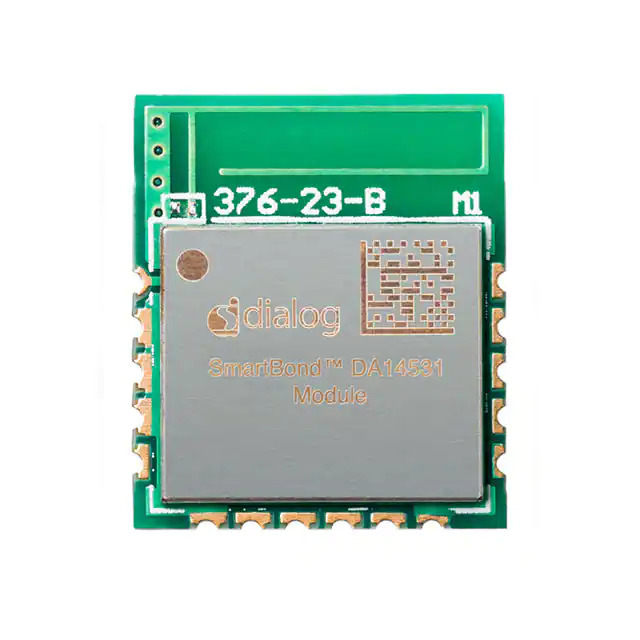

DA14531MOD-00F01002 Renesas Electronics America
Same model may have multiple batches, images only for reference.

DA14531MOD-00F01002

Part No DA14531MOD-00F01002
Manufacturer Renesas Electronics America
Catalog RF Transceiver Modules
Description BLUETOOTH LOW ENERGY 5.1 MODULE / Bluetooth Bluetooth v5.1 Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Trace Surface Mount
Datasheet
DA14531MOD-00F01002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Renesas Design Germany GmbH
Series SmartBond™
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v5.1
Modulation -
Frequency 2.4GHz ~ 2.4835GHz
Data Rate -
Power - Output 2.2dBm
Sensitivity -93dBm
Serial Interfaces ADC, GPIO, I²C, SPI, UART
Antenna Type Integrated, Trace
Utilized IC / Part DA14531
Memory Size 128kB Flash, 144kB ROM, 48kB RAM
Voltage - Supply 1.8V ~ 3.3V
Current - Receiving 2mA
Current - Transmitting 4mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-SMD Module
Base Product Number DA14531
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8517.62.0090
Win Source Part Number 1354038-DA14531MOD-00F01002
Ultra Librarian 3D Model Ultra Librarian DA14531MOD-00F01002 CAD Model

Description

The 1354038-DA14531MOD-00F01002 is an RF transceiver module from Renesas Design Germany GmbH. It belongs to the SmartBond™ series and operates in the frequency range of 2.4GHz to 2.4835GHz.

  • Series: SmartBond™
  • Protocol: Bluetooth v5.1
  • Frequency: 2.4GHz ~ 2.4835GHz
  • Voltage - Supply: 1.8V ~ 3.3V
  • Memory Size: 128kB Flash, 144kB ROM, 48kB RAM
  • Mounting Type: Surface Mount
  • Package / Case: 16-SMD Module
  • Mfr: Renesas Design Germany GmbH
  • Serial Interfaces: ADC, GPIO, I²C, SPI, UART
  • Power - Output: 2.2dBm
  • Sensitivity: -93dBm
