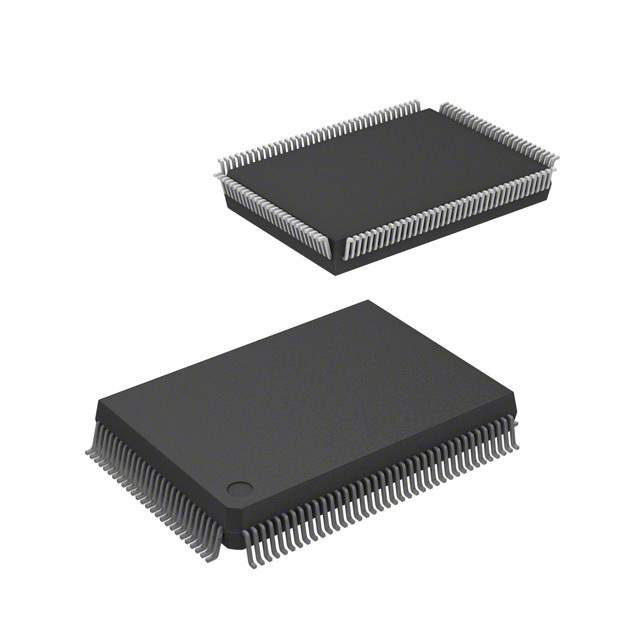

D12320VF25V Real Image
Same model may have multiple batches, images only for reference.

D12320VF25V

Part No D12320VF25V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT ROMLESS 128QFP / H8S/2000 series Microcontroller IC 16-Bit 25MHz ROMless 128-QFP (14x20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series H8® H8S/2300
Package Tray
Product Status Not For New Designs
Core Processor H8S/2000
Core Size 16-Bit
Speed 25MHz
Connectivity SCI, SmartCard
Peripherals DMA, POR, PWM, WDT
Number of I/O 86
Program Memory Type ROMless
RAM Size 4K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting SMD (SMT)
Package / Case 128-BFQFP
Supplier Device Package 128-QFP (14x20)
Base Product Number D12320
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 72
Win Source Part Number 1054552-D12320VF25V
Ultra Librarian 3D Model Ultra Librarian D12320VF25V CAD Model

Description

The Renesas H8S/2300 series microcontroller is a high-performance device with a 16-bit core size and a speed of 25MHz.

  • Core Size: 16-bit
  • Speed: 25MHz
  • I/O Ports: 86
  • Connectivity: SCI and SmartCard
  • RAM Size: 4K x 8
  • Data Converters: A/D 8x10b and D/A 2x8b
  • Features: built-in oscillator
  • Package: 128-BFQFP
  • Operating Temperature: -20°C to 75°C (TA)
  • Supply Voltage: 2.7V to 3.6V
