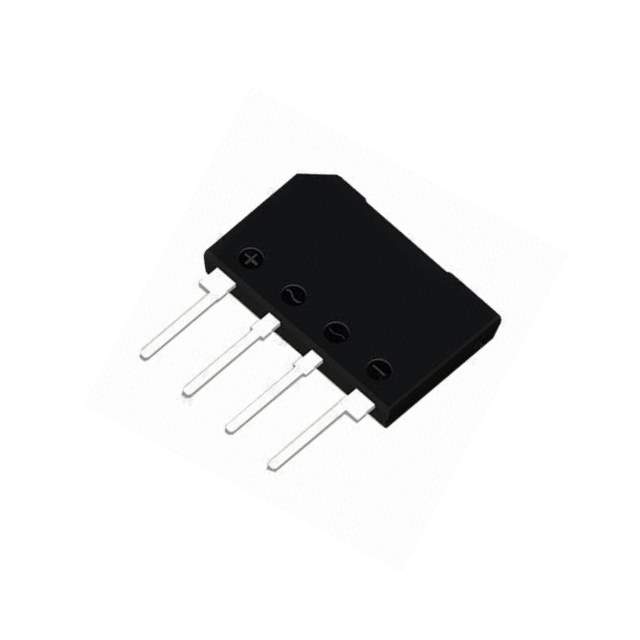

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer Rectron USA
Packaging Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 7.5 A
Current - Reverse Leakage @ Vr 500 nA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Case / Package 4-Square, MP-15
Supplier Device Package MP-15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2516-MP156
Standard Package 400
Win Source Part Number 1324264-MP156
Ultra Librarian 3D Model Ultra Librarian MP156 CAD Model

Description

The MP156 is a single-phase standard technology diode bridge rectifier part of the Discrete Semiconductor Products category, manufactured by Rectron USA.

  • Mounting Type: Chassis Mountable
  • Packaging: Tray
  • Standard Package: 400 units
  • Current Average Rectified (Io): 15A
  • Voltage Forward (Vf) (Max) @ If: 1.05V @ 7.5A
  • Current Reverse Leakage @ Vr: 500nA @ 600V
  • Voltage Peak Reverse (Max): 600V
  • MSL Level: 1 (unlimited)
  • ROHS3 Compliant: true
