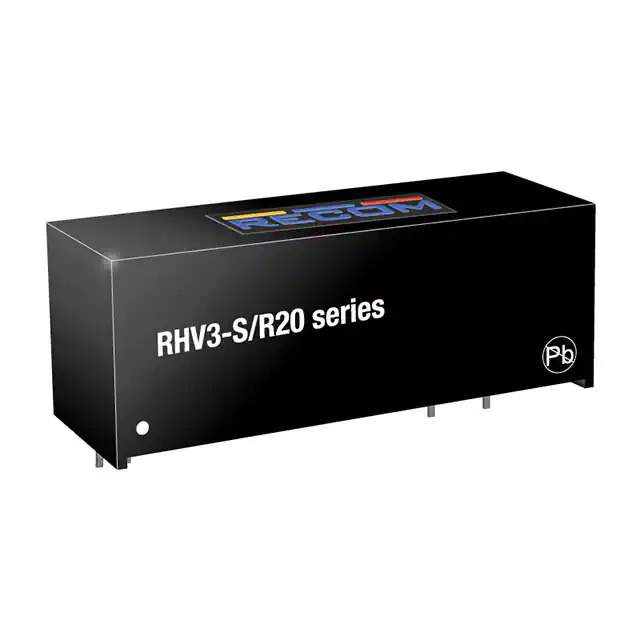

Same model may have multiple batches, images only for reference.

RHV3-0524S/R20

Name: RHV3-0524S/R20
Brand: Recom Power
SKU: 848184
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RHV3-0524S/R20
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 3W / Isolated Module DC DC Converter 1 Output 24V 125mA 4.5V - 5.5V Input
Datasheet	RHV3-0524S/R20 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RHV3 (3W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	24V
Current - Output (Max)	125mA
Power (Watts)	3 W
Voltage - Isolation	20 kV
Applications	ITE (Commercial), Laboratory
Temperature Range - Operating	-40°C ~ 80°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	16-SIP Module, 4 Leads
Size / Dimension	1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm)
Base Product Number	RHV3-0524
Standard Package	10 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	848184-RHV3-0524S/R20
Ultra Librarian 3D Model	Ultra Librarian RHV3-0524S/R20 CAD Model

Alternative Products

Description

The 848184-RHV3-0524S/R20 is a 3W isolated module DC-DC converter from the ECONOLINE RHV3 series by Recom Power.

Applications: Commercial, Laboratory
Size / Dimension: 1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm)
Power (Watts): 3W
Number of Outputs: 1
Voltage - Output 1: 24V
Current - Output (Max): 125mA
Voltage - Input: 4.5V ~ 5.5V
Efficiency: 80%
Operating Temperature: -40°C ~ 80°C
Mounting Type: Through Hole
Package / Case: 16-SIP Module
Number of Leads: 4
