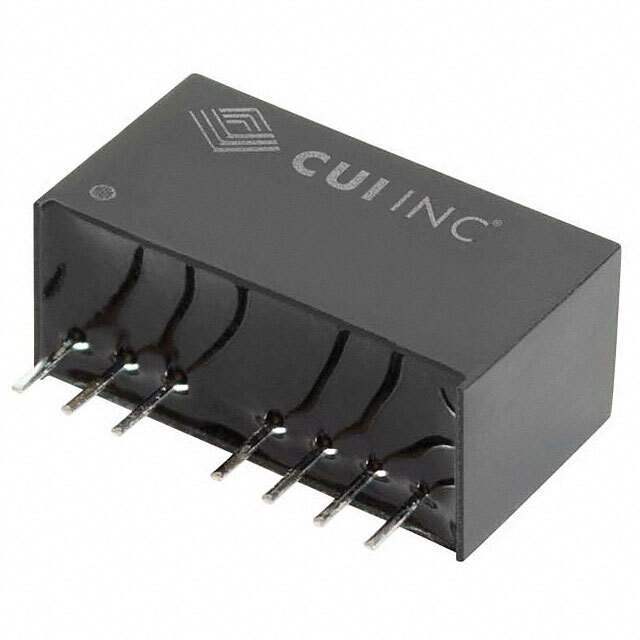

PQMC3-D24-S15-S CUI Inc.
Same model may have multiple batches, images only for reference.

PQMC3-D24-S15-S

Part No PQMC3-D24-S15-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 3W
Datasheet
PQMC3-D24-S15-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307788-PQMC3-D24-S15-S
Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Packaging Tube
Part Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 200mA
Ultra Librarian 3D Model Ultra Librarian PQMC3-D24-S15-S CAD Model

Description

  • 3 W isolated output
  • smaller package
  • single/dual regulated output
  • 1,500 Vdc isolation
  • continuous short circuit
  • temperature range (-40~105°C)
  • high efficiency at light load
  • efficiency up to 84%
