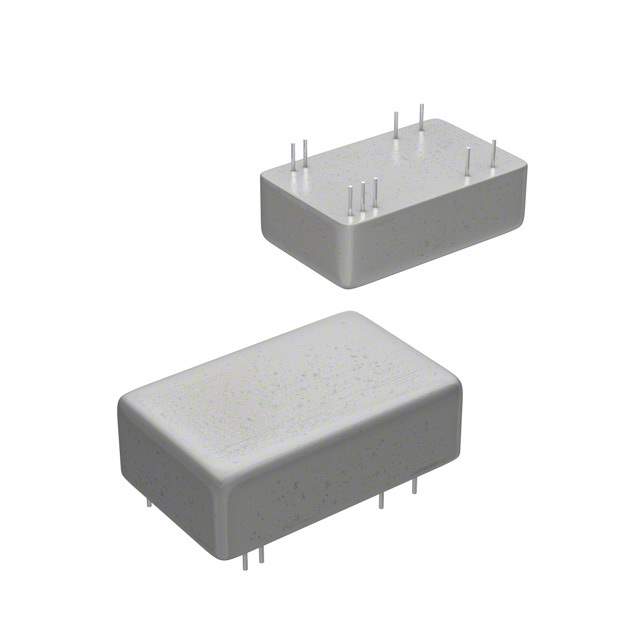

Same model may have multiple batches, images only for reference.

REC10-2412DRW/H2/A/M

Name: REC10-2412DRW/H2/A/M
Brand: Recom Power
SKU: 1335301
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	REC10-2412DRW/H2/A/M
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 36V Input
Datasheet	REC10-2412DRW/H2/A/M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	416mA, 416mA
Power (Watts)	10 W
Voltage - Isolation	2 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 75°C
Efficiency	86%
Mounting	Through Hole
Case / Package	24-DIP Module, 9 Leads
Size / Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	REC10-2412
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	REC10-2412DRW/H2/A/M-ND,REC102412DRW/H2/A/M,945-2342-5,11002574
Standard Package	15
Win Source Part Number	1335301-REC10-2412DRW/H2/A/M
Ultra Librarian 3D Model	Ultra Librarian REC10-2412DRW/H2/A/M CAD Model

Alternative Products

Description

The Recom Power REC10-2412DRW/H2/A/M is an isolated module DC DC converter that is designed to be used in various electronic applications.

Power: 10W
Remote on/off: Yes
OCP: Yes
SCP: Yes
Number of Outputs: 2
Maximum Current Output: 416mA each
Input Voltage Range: 18V to 36V
Output Voltage for Output 1: 12V
Output Voltage for Output 2: -12V
Efficiency: 86%
Temperature Range: -40°C to 75°C
Mounting: through hole
Case/Package: 24-DIP module, 9 leads
