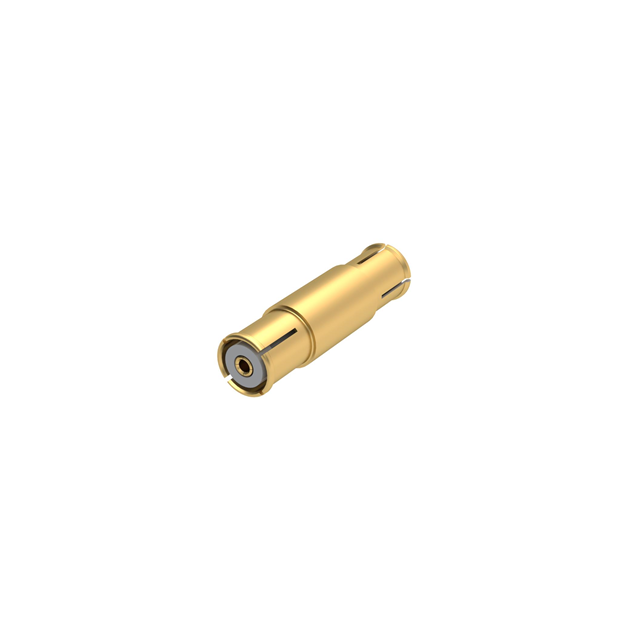

Same model may have multiple batches, images only for reference.

R222M40070

Name: R222M40070
Brand: Radiall USA, Inc.
SKU: 1341547
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R222M40070
Manufacturer	Radiall USA, Inc.
Catalog	Coaxial Connectors (RF)
Description	SMP-MAX / STRAIGHT FEMALE-FEMALE / Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50Ohm
Datasheet	R222M40070 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr	Radiall USA, Inc.
Package	Bulk
Adapter Type	Jack to Jack
Conversion Type	Same Series
Adapter Series	SMP to SMP
Center Gender	Female to Female
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	SMP Jack, Female Socket
Impedance	50Ohm
Style	Straight
Mounting Type	Free Hanging (In-Line)
Fastening Type	Snap-On, Snap-On
Frequency - Max	6 GHz
Center Contact Plating	Gold
Body Material	Beryllium Copper
Body Finish	Gold
Center Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Mating Cycles	100
Temperature Range - Operating	-55°C ~ 165°C
Base Product Number	R222M
Standard Package	100
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1341547-R222M40070
Ultra Librarian 3D Model	Ultra Librarian R222M40070 CAD Model

Alternative Products

Description

The R222M40070 from Radiall USA, Inc. is a straight style coaxial connector that has a snap-on fastening type.

Style: Straight
Fastening Type: Snap-On
Type: RF Adapter
Impedance: 50Ohm
Maximum Frequency: 6 GHz
Mounting: Snap-On
Body Material: Beryllium Copper
Body Finish: Gold
Center Contact Material: Beryllium Copper with Gold Plating
Dielectric Material: PTFE
Mating Cycle: 100
Adapter: Jack to Jack
Converts From: SMP Jack, Female Socket
Converts To: SMP Jack, Female Socket
Series: SMP to SMP
Center Gender: Female to Female
Conversion Type: Same Series
Mounting Type: Free Hanging (In-Line)
Temperature Range: -55°C ~ 165°C
MSL Level: Not Applicable
HTSUS: 8536.69.4010
