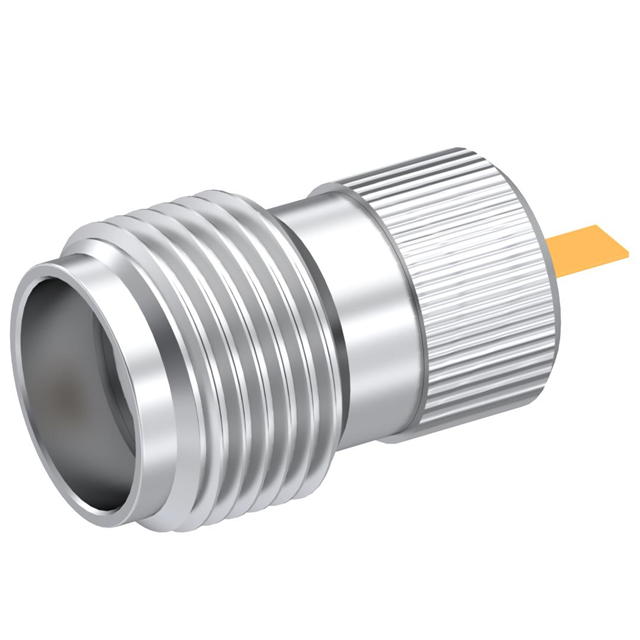

9433-9113-000 Real Image
Same model may have multiple batches, images only for reference.

9433-9113-000

Part No 9433-9113-000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description SMA / STRAIGHT JACK RECEPTACLE F / SMA Connector Jack, Female Socket 50Ohm Free Hanging (In-Line) Solder Cup
Datasheet
9433-9113-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Radiall USA, Inc.
Package Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 9433-9113
Standard Package 25
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1348132-9433-9113-000
Ultra Librarian 3D Model Ultra Librarian 9433-9113-000 CAD Model

Description

The 9433-9113-000 from Radiall USA, Inc. is a high-quality SMA coaxial connector assembly.

  • Connector Type: Female
  • Fastening Type: Threaded
  • Contact Termination: Solder Cup
  • Material: Stainless Steel
  • Housing Color: Silver
  • Maximum Frequency: 18 GHz
  • Impedance: 50Ohm
  • Temperature Range: -65°C to 165°C
  • Mating Cycles: 500
  • Win Source Part Number: 1348132-9433-9113-000
