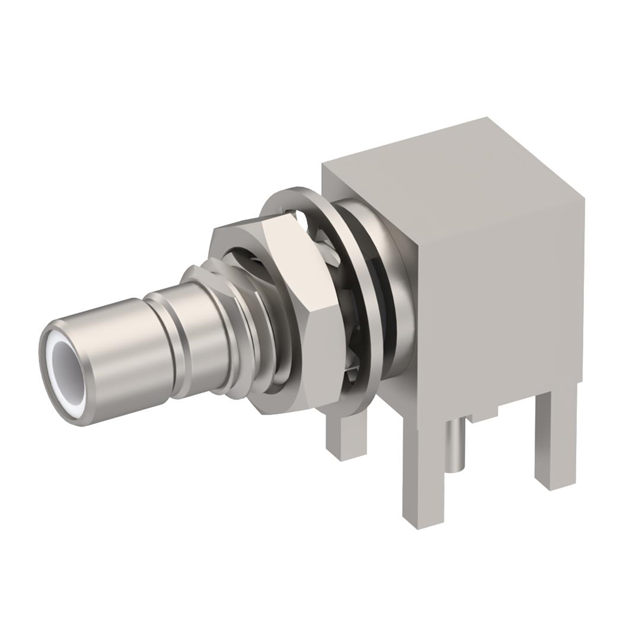

2110-7511-000 Real Image
Same model may have multiple batches, images only for reference.

2110-7511-000

Part No 2110-7511-000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description SMB M RA BHD / SMB Connector Jack, Male Pin 50Ohm Panel Mount, Through Hole, Right Angle Solder
Datasheet
2110-7511-000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Radiall USA, Inc.
Packaging Bulk
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Snap-On
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 2110-7511
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 2201-2110-7511-000
Standard Package 25
Win Source Part Number 1334133-2110-7511-000
Ultra Librarian 3D Model Ultra Librarian 2110-7511-000 CAD Model

Description

The 1334133-2110-7511-000 is a coaxial connector assembly manufactured by Radiall USA, Inc.

  • Connector Type: Jack, Male Pin
  • Fastening Type: Snap-On
  • Connector Style: SMB
  • Impedance: 50Ohm
  • Frequency: Up to 4GHz
  • Body Finish: Nickel
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Operating Temperature: -65°C to 165°C
  • Packaging: Bulk
  • Standard Package: 25
