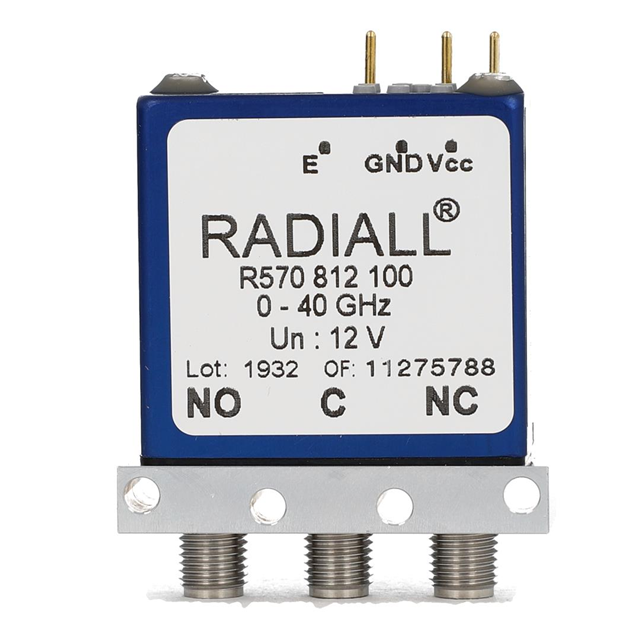

Same model may have multiple batches, images only for reference.

R570812100

Name: R570812100
Brand: Radiall USA, Inc.
SKU: 1231780
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	R570812100
Manufacturer	Radiall USA, Inc.
Catalog	RF Switches
Description	SPDT RAMSES SMA2.9 40GHZ FAILSAF / RF Switch IC General Purpose SPDT 50Ohm
Datasheet	R570812100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Switches
Mfr	Radiall USA, Inc.
Package	Box
RF Type	General Purpose
Circuit	SPDT
Frequency Range	0Hz ~ 40GHz
Isolation	50dB
Insertion Loss	0.8dB
Test Frequency	40GHz
Impedance	50Ohm
Voltage - Supply	10.2V ~ 13V
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	Module
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	2201-R570812100,R570.812.100
Standard Package	1
Win Source Part Number	1231780-R570812100
Ultra Librarian 3D Model	Ultra Librarian R570812100 CAD Model

Alternative Products

Description

The R570812100 is an RF switch manufactured by Radiall USA, Inc.

Type: general-purpose RF switch
Test Frequency: 40GHz
Impedance: 50Ohm
Insertion Loss: 0.8dB
Isolation: 50dB
Package: module
Voltage Supply Range: 10.2V to 13V
Alternative Parts: No alternative parts available
