Same model may have multiple batches, images only for reference.

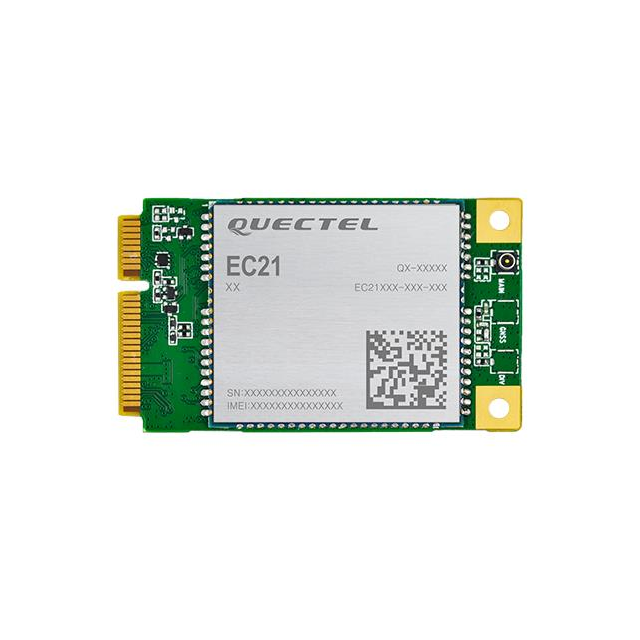

EC21EFA-MINIPCIE Real Image
Same model may have multiple batches, images only for reference.

EC21EFA-MINIPCIE

Part No EC21EFA-MINIPCIE
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELL/NAV CARD EDGE / Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tray
RF Family/Standard Cellular, Navigation
Protocol BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, UMTS, WCDMA
Data Rate 42Mbps
Serial Interfaces I²C, PCM, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 3.6V
Current - Receiving 30mA
Current - Transmitting 30mA
Mounting Type Card Edge
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number EC21
MSL Level Not Applicable
ECCN 5A992C 22
HTSUS 8517.62.0090
Other Names 2958-EC21EFA-MINIPCIECTINACTIVE,2958-EC21EFA-MINIPCIEDKRINACTIVE,2958-EC21EFA-MINIPCIEDKR-ND,2958-EC21EFA-MINIPCIETR-ND,2958-EC21EFA-MINIPCIE,2958-EC21EFA-MINIPCIECT-ND,2958-EC21EFA-MINIPCIETR,2958-EC21EFA-MINIPCIEDKR,2958-EC21EFA-MINIPCIECT
Standard Package 100
Win Source Part Number 1214425-EC21EFA-MINIPCIE
Ultra Librarian 3D Model Ultra Librarian EC21EFA-MINIPCIE CAD Model

Description

The Quectel EC21EFA-MINIPCIE is a cellular and navigation RF transceiver module.

  • Data Rate: 42Mbps
  • Protocols: BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, UMTS, and WCDMA
  • Current Consumption: 30mA (Receiving and Transmitting)
  • Operating Temperature: -35°C to 75°C
  • Package/Case: Module
  • Series Standard Package: 100
