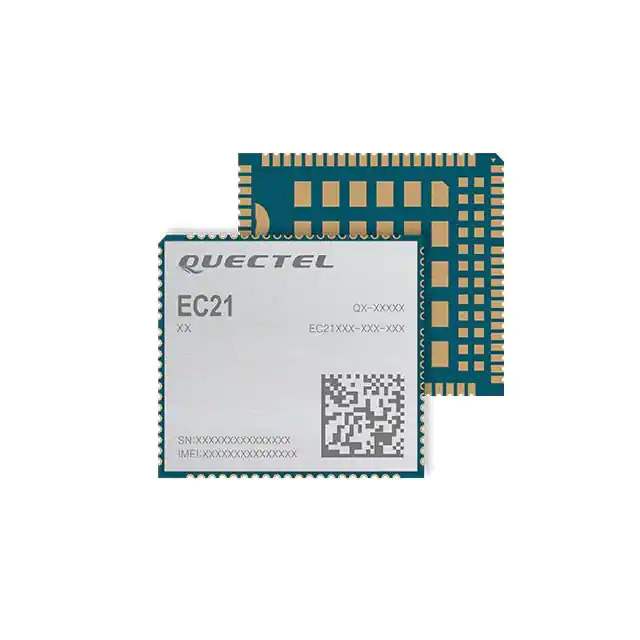

EC21AFA-512-STD Real Image
Same model may have multiple batches, images only for reference.

EC21AFA-512-STD

Part No EC21AFA-512-STD
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELLULAR CARD EDGE / Cellular LTE, WCDMA Transceiver Module Antenna Not Included Card Edge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Active
Programmable Not Verified
RF Family/Standard Cellular
Protocol LTE, WCDMA
Data Rate 10Mbps
Power - Output 33dBm
Sensitivity -102dBm
Serial Interfaces UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 3.6V
Current - Receiving 34mA
Current - Transmitting 34mA
Mounting Type Card Edge
Temperature Range - Operating -40°C ~ 80°C
Package / Case Module
Base Product Number EC21
Standard Package 250 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C 23
HTSUS 8517.62.0090
Win Source Part Number 917755-EC21AFA-512-STD
Ultra Librarian 3D Model Ultra Librarian EC21AFA-512-STD CAD Model

Description

The 917755-EC21AFA-512-STD is an RF transceiver module and modem, suitable for wireless communication applications. It supports LTE and WCDMA protocols, with a data rate of 10Mbps.

  • Protocols: LTE and WCDMA
  • Data Rate: 10Mbps
  • RF Family/Standard: Cellular
  • Voltage Supply: 3V to 3.6V
  • Power Output: 33dBm
  • Sensitivity: -102dBm
  • Current Consumption (RX/TX): 34mA
  • Package: Tape and Reel
  • Standard Package: 250 pieces
  • Temperature Range: -40°C to 80°C
  • Series: EC21
  • Manufacturer: Quectel
  • ECCN: 5A992C
  • Counterfeit Risk: 61% chance in the open market
  • HTSUS Code: 8517.62.0090
  • Market Status: Active
