Same model may have multiple batches, images only for reference.

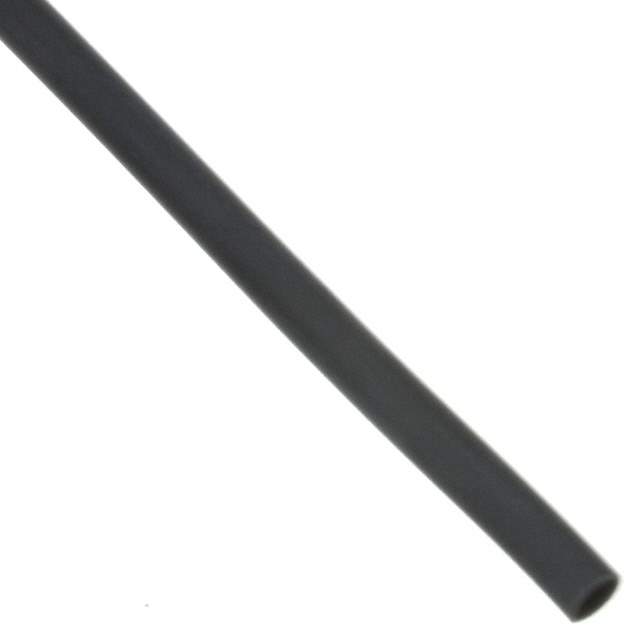

Q2-F-1/16-01-SS1000FT Real Image
Same model may have multiple batches, images only for reference.

Q2-F-1/16-01-SS1000FT

Part No Q2-F-1/16-01-SS1000FT
Manufacturer Qualtek
Catalog Heat Shrink Tubing
Description HEATSHRK BLK 1/16X1" 1=50PC / Heat Shrink Tubing, Flexible 0.063" (1.60mm) 2 to 1 Black 0.083' (25.40mm, 1.00")
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Management>Heat Shrink Tubing
Mfr Qualtek
Series Q2-F
Package Bulk
Type Tubing, Flexible
Shrinkage Ratio 2 to 1
Length 0.083' (25.40mm, 1.00")
Inner Diameter - Supplied 0.063" (1.60mm)
Inner Diameter - Recovered 0.031" (0.79mm)
Recovered Wall Thickness 0.016" (0.41mm)
Material Polyolefin (PO)
Features Flame Retardant
Color Black
Temperature Range - Operating -55°C ~ 135°C
Shrink Temperature 70°C
Storage/Refrigeration Temperature -50°F ~ 104°F (-10°C ~ 40°C)
Shelf Life 144 Months
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Other Names Q2F116B-1R0
Standard Package 1
Win Source Part Number 1166177-Q2-F-1/16-01-SS1000FT
Ultra Librarian 3D Model Ultra Librarian Q2-F-1/16-01-SS1000FT CAD Model

Description

The Q2-F heat shrink tubing is flexible and has a recovered wall thickness of 0.016 inches. It is flame retardant and comes in the color black. The Bourns Inc. SA2-5500 is a gas discharge tube arrester (GDT) that has a voltage DC spark over of 5500V.

  • Voltage DC Spark Over: 5500V
  • Tolerance: -15%, +20%
  • Impulse Discharge Current: 5000A (5kA) (8/20µs)
  • Mounting: Through-Hole
  • Package: Axial Cylinder

The Bourns Inc. SRR1205-390ML is a fixed inductor that has a shielded drum core and is wirewound.

  • Inductance: 39 µH
  • Tolerance: ±20%
  • Current Rating: 1.65A
  • DC Resistance (DCR): 160mOhm Max
  • Package: Nonstandard

The Vicor Corporation VI-JW2-MY is an isolated module DC DC converter that has one output.

  • Operating Temperature: -55°C to 100°C
  • Estimated Production Lead Time: 25 weeks
