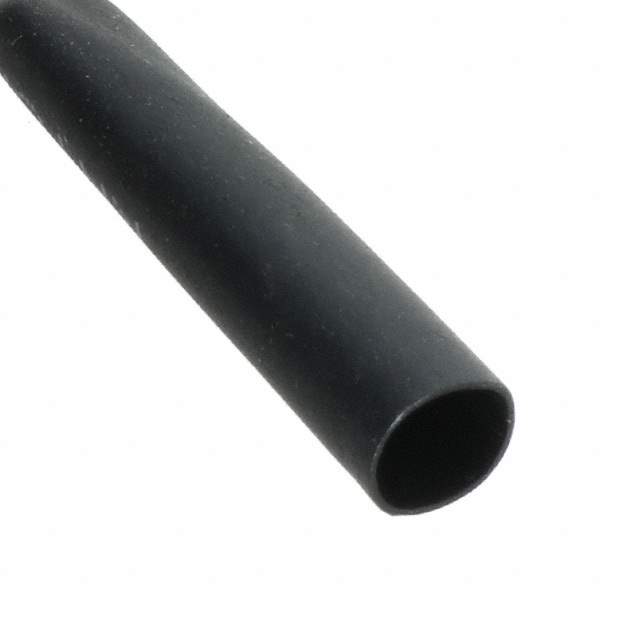

DR-25-TW-3/16-0-SP Real Image
Same model may have multiple batches, images only for reference.

DR-25-TW-3/16-0-SP

Part No DR-25-TW-3/16-0-SP
Manufacturer TE Connectivity
Catalog Heat Shrink Tubing
Description HEATSHRINK TWIN WALL 3/16" BK / Heat Shrink Tubing ST Black Thin Spool
Datasheet
DR-25-TW-3/16-0-SP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires - Management
Manufacturer TE Connectivity Raychem Cable Protection
Series Thermofit DR-25-TW
Type Tubing, Flexible
Shrinkage Ratio 2 to 1
Inner Diameter - Supplied 0.187" (4.75mm)
Inner Diameter - Recovered 0.093" (2.36mm)
Recovered Wall Thickness 0.020" (0.51mm)
Material Elastomer, Irradiated
Features Abrasion Resistant, Chemical Resistant, Heat Resistant, Fluid Resistant, Flame Retardant, Fuel Resistant, Oil Resistant
Color Black
Operating Temperature Range -75°C ~ 150°C
Shrink Temperature 125°C
Win Source Part Number 772829-DR-25-TW-3/16-0-SP
Popularity Medium
Supply and Demand Status Limited
Family Name DR-25-TW
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Czech Republic, Switzerland, United Kingdom, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian DR-25-TW-3/16-0-SP CAD Model

Description

TE Connectivity Raychem Cable Protection DR-25-TW-3/16-0-SP is a high-quality tubing that is designed to provide excellent protection to electronic components.

  • Material: Elastomer
  • Resistance: Abrasion, chemicals, heat, fluids, flames, fuels, and oils
  • Shrink Ratio: 2 to 1
  • Inner Diameter (Supplied): 0.187 inches (4.75mm)
  • Inner Diameter (Recovered): 0.093 inches (2.36mm)
  • Recovered Wall Thickness: 0.020 inches (0.51mm)
  • Shrink Temperature: 125°C
  • Operating Temperature Range: -75°C to 150°C
  • Series: Thermofit DR-25-TW
  • Applications: Cables and wires management
  • Color: Black
