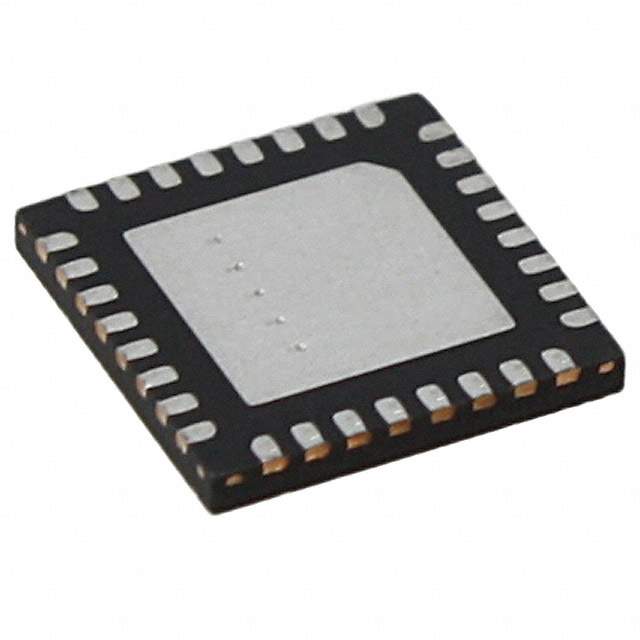

CSR1010A05-IQQM-R Qualcomm CSR1010A05-IQQM-R Real Image CSR1010A05-IQQM-R real image CSR1010A05-IQQM-R real image3124
Same model may have multiple batches, images only for reference.
CSR1010A05-IQQM-R Qualcomm CSR1010A05-IQQM-R Real Image CSR1010A05-IQQM-R real image CSR1010A05-IQQM-R real image3124
CSR1010A05-IQQM-R Qualcomm CSR1010A05-IQQM-R Real Image CSR1010A05-IQQM-R real image CSR1010A05-IQQM-R real image3124
Same model may have multiple batches, images only for reference.

CSR1010A05-IQQM-R

Part No CSR1010A05-IQQM-R
Manufacturer Qualcomm
Catalog RF Transceiver ICs
Description Bluetooth v4.0 (BLE) SMART SOC 32-Pin QFN EP T/R / IC RF TXRX+MCU BLUETOOTH 32UFQFN
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer QUALCOMM
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Frequency 2.4GHz
Data Rate (Max) 3.69Mbaud
Power - Output 9dBm
Sensitivity -93dBm
Memory Size 64kB RAM, 64kB ROM
Serial Interfaces I2C, SPI, UART
GPIO 15
Supply Voltage - Operating 1.2 V to 3.6 V
Current - Receiving 20mA
Current - Transmitting 18mA
Temperature Range - Operating -30°C to 85°C
Dimension 32-UFQFN Exposed Pad
Win Source Part Number 013388-CSR1010A05-IQQM-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name CSR1010A05
Introduction Date April 08, 2013
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CSR1010A05-IQQM-R CAD Model

Description

CSR1010A05-IQQM-R

The CSR1010A05-IQQM-R is engineered to optimize performance in a wide array of electronic devices, providing a reliable solution for developers and engineers seeking high-efficiency components.

  • Applications and Projects:
    • Bluetooth-enabled devices
    • Sensor networks
    • Connected appliances
    • Industrial automation
  • Features and Benefits:
    • Advanced RF performance for seamless connectivity
    • Multi-layer security protocols
    • Durable design for long-lasting use
    • Wide compatibility with various systems
  • Additional Details:
    • Voltage range: 1.8V to 3.6V
    • RoHS compliant
    • Manufacturer: Renowned global manufacturer
