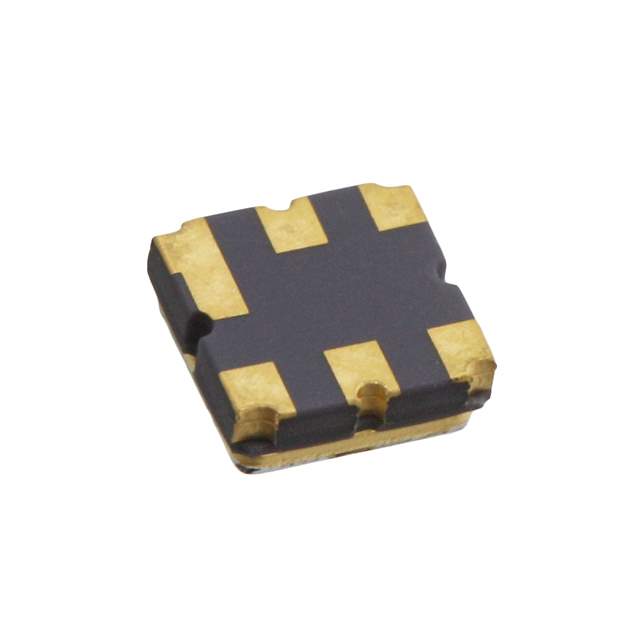

The B39921B3949H110 is a SAW (Surface Acoustic Wave) filter designed and manufactured by Qualcomm. It is engineered for use in a variety of wireless communication applications where precise signal filtering is essential. SAW filters are crucial components in RF front-ends, providing selectivity and interference rejection.

Applications

• Wireless communication devices
• Mobile handsets
• Base stations
• Wireless networking equipment (Wi-Fi)
• RF modules

Features

• SAW filter technology
• High selectivity and sharp roll-off
• Low insertion loss
• Small form factor for compact designs
• Surface Mount Device (SMD) package
• Stable performance across temperature variations

Benefits

• Improved signal-to-noise ratio (SNR) in wireless systems
• Reduced interference from adjacent channels
• Increased range and reliability of wireless communication
• Miniaturization of wireless devices
• Easy integration into PCB designs
• Consistent performance in diverse operating environments

Additional Details

The B39921B3949H110 filter operates by converting an electrical signal into a mechanical wave on the surface of a piezoelectric substrate. This mechanical wave is then filtered based on its frequency characteristics, and subsequently converted back into an electrical signal. This process allows for highly selective filtering with minimal signal loss.

The specific characteristics of the B39921B3949H110 are tailored to meet the requirements of particular wireless standards and frequency bands. These include center frequency, bandwidth, insertion loss, and rejection specifications. It's important to consult the datasheet to verify that the filter's characteristics are suitable for the intended application. This filter helps ensure robust and reliable wireless communication by eliminating unwanted signals and noise, leading to clearer and more efficient data transmission.

Proper impedance matching is essential for optimal performance. The filter's impedance should be carefully matched to the source and load impedances in the circuit to minimize signal reflections and maximize power transfer. The high selectivity ensures that only the desired signals are passed, preventing interference from other nearby frequencies. The compact size allows for easy integration into space-constrained designs, making it suitable for use in mobile devices and other portable equipment.
