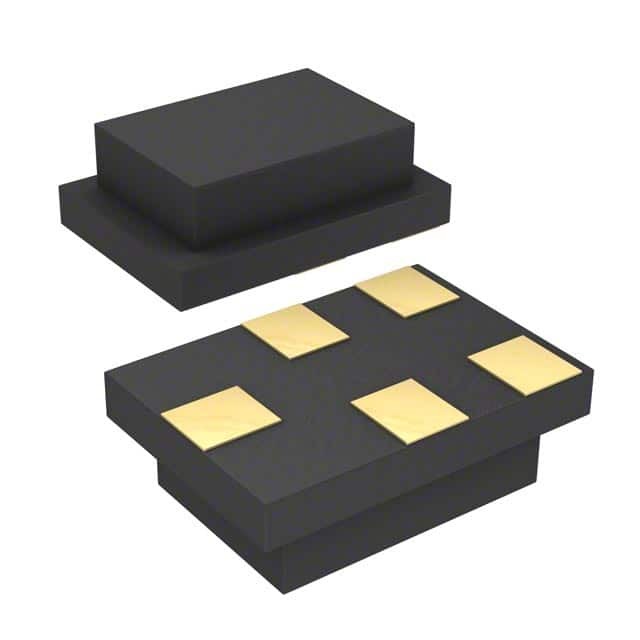

B39741B9892P810
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr Qualcomm
Package Bulk
Product Status Obsolete
Frequency - Center 740MHz
Bandwidth 12MHz
Insertion Loss 1.8dB
Applications Cellular, LTE
Mounting Type Surface Mount
Package / Case 5-SMD, No Lead
Height (Max) 0.016" (0.40mm)
Size / Dimension 0.043" L x 0.035" W (1.10mm x 0.90mm)
Standard Package 1 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 912488-B39741B9892P810
Ultra Librarian 3D Model Ultra Librarian B39741B9892P810 CAD Model

Description

The 912488-B39741B9892P810 is an obsolete SAW filter from Qualcomm. It is designed for cellular and LTE applications.

  • Size: 0.043" x 0.035" (1.10mm x 0.90mm)
  • Height: 0.016" (0.40mm)
  • Bandwidth: 12MHz
  • Frequency Center: 740MHz
  • Insertion Loss: 1.8dB
  • Mounting Type: Surface Mountable
  • Package: 5-SMD, no lead
  • ECCN: EAR99 compliant
  • REACH: Not affected
  • Status: Obsolete
  • Packaging: Bulk
  • Standard Package: 1 piece
