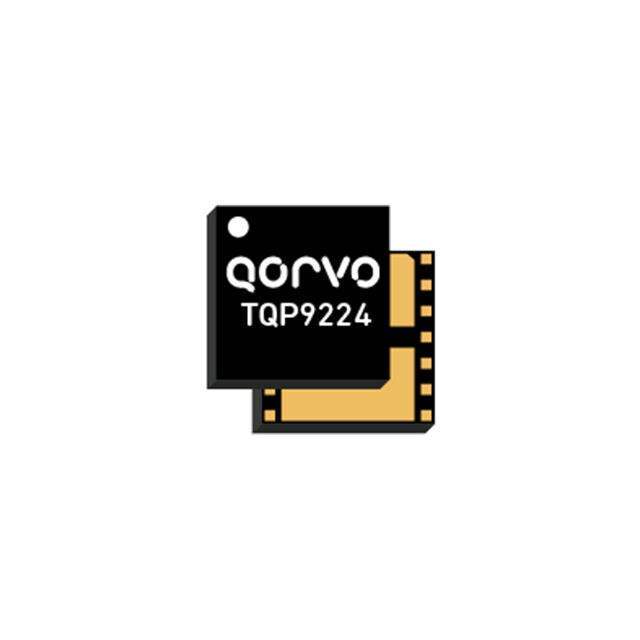

TQP9224TR13 Qorvo
Same model may have multiple batches, images only for reference.

TQP9224TR13

Part No TQP9224TR13
Manufacturer Qorvo US Inc.
Catalog RF Amplifiers
Description 2.3-2.4GHZ 0.25W LINEAR SMALLCEL
Datasheet
TQP9224TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The TQP9224 is a high-linearity three-stage power amplifier in a low-cost surface-mount package with on-chip bias control and temperature control circuits, suitable for small cell or enterprise Femto cell base station applications.

The TQP9224 provides 36.7 dB high gain and −50 dBc ACLR at +24 dBm linear power using a 20 MHz LTE signal over the 2.3 – 2.4 GHz frequency range covering 3GPP Bands 30, 40.
