TS8121CM HF Pulse – Price, Stock & Datasheet

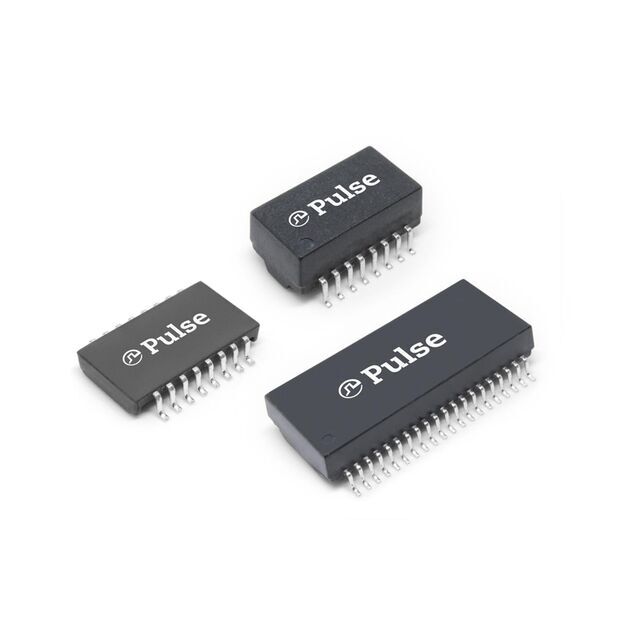

Same model may have multiple batches, images only for reference.

TS8121CM HF

Part No TS8121CM HF
Manufacturer Pulse
Catalog Pulse Transformers
Description 350µH LAN 10/100 Base-T, Power over Ethernet (PoE) Pulse Transformer 1:1CT Transmitter, 1:1CT Receiver Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics
Packaging Reel - TR
Transformer Type LAN 10/100 Base-T, Power over Ethernet (PoE)
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max) 0.222" (5.65mm)
Temperature Range - Operating -40°C ~ 85°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1480362-TS8121CM HF
Ultra Librarian 3D Model Ultra Librarian TS8121CM HF CAD Model
