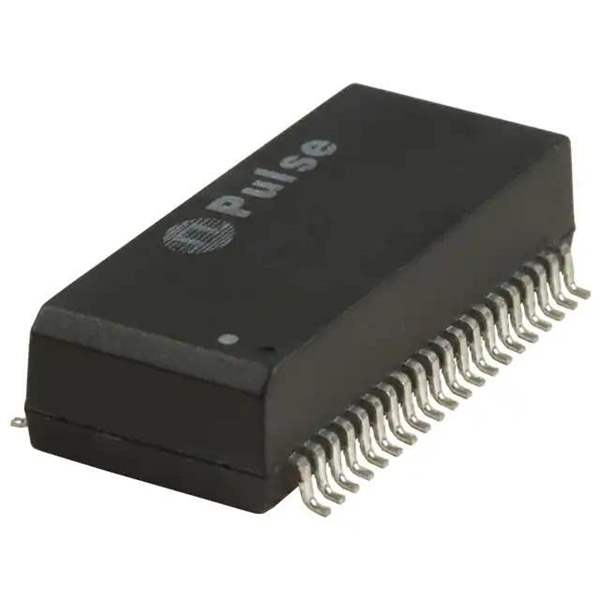

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Obsolete
Transformer Type LAN
Mounting Type Surface Mount
Size / Dimension 1.125" L x 0.480" W (28.58mm x 12.19mm)
Height - Seated (Max) 0.230" (5.84mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.17 oz (4.84 g)
Standard Package 15 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 595439-H1164
Ultra Librarian 3D Model Ultra Librarian H1164 CAD Model

Description

The 595439-H1164 is a Pulse Transformer component from Pulse.

  • Package: Tray (15 pieces)
  • Size/Dimension: 1.125 inches (length) x 0.480 inches (width)
  • Type: LAN transformer
  • Seated Height: 0.230 inches
  • Weight: 0.17 ounces
  • Mounting: Surface Mount
  • Operating Temperature Range: 0°C to 70°C
  • ECCN: EAR99
  • MSL: 4 (72 hours moisture sensitivity)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
  • Status: Obsolete
