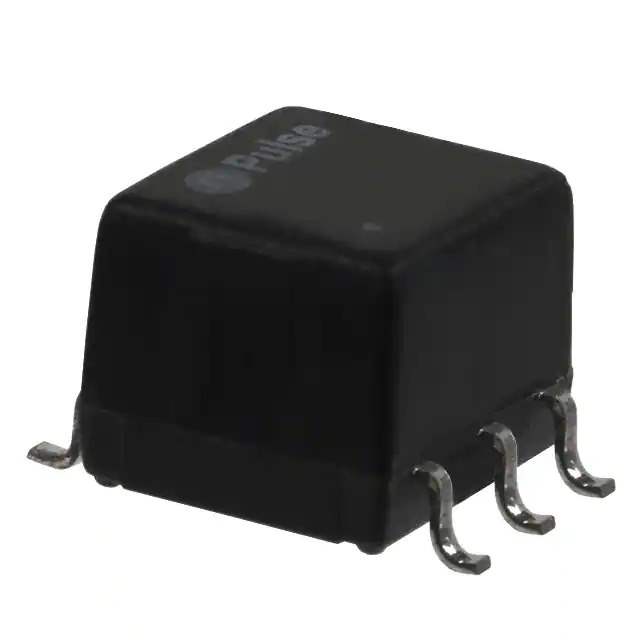

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Obsolete
Transformer Type T3/E3 (Single)
Inductance 40µH
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.275" W (7.62mm x 7.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 70 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351318-T3002
Ultra Librarian 3D Model Ultra Librarian T3002 CAD Model

Description

The 351318-T3002 is a pulse transformer used in transformers.

  • Product Name: 351318-T3002
  • Type: Pulse transformer
  • Application: Transformers
  • Category: Transformers - Pulse Transformers
  • Package: Bulk
  • Size/Dimension: 0.300" L x 0.275" W (7.62mm x 7.00mm)
  • Transformer Type: T3/E3 (Single)
  • Inductance: 40µH
  • Seated Height: 0.250" (6.35mm)
  • Standard Package: 70 pieces
  • Mounting Type: Surface mount
  • Operating Temperature: -40°C to 85°C
  • MSL: 3 (168 Hours)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
  • Status: Obsolete
