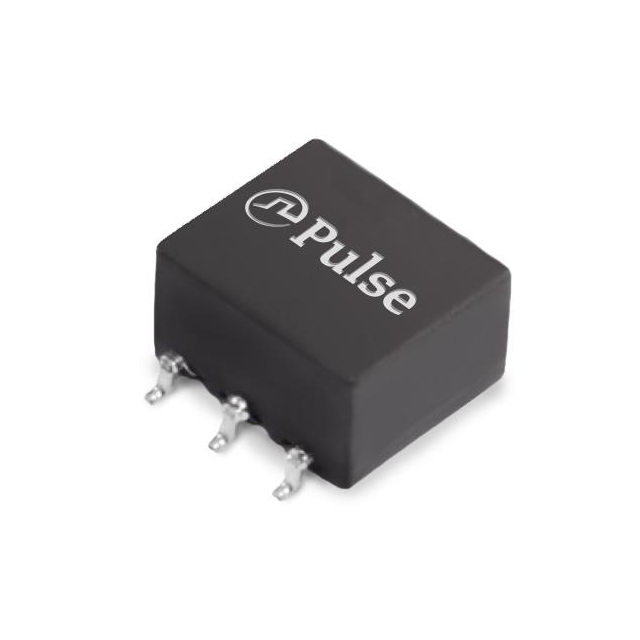

PM2180.011NLT Real Image
Same model may have multiple batches, images only for reference.

PM2180.011NLT

Part No PM2180.011NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR GATE-DR 1CT:1CT SM NPB  /  1.02mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT Surface Mount
Datasheet
PM2180.011NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Power
Series PM2180.XXXNL
Package Tape & Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 1.02mH
ET (Volt-Time) 22VµS
Mounting SMD (SMT)
Dimension 0.319" L x 0.280" W (8.10mm x 7.10mm)
Height - Seated (Max) 0.200" (5.08mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-PM2180.011NLTCT,553-PM2180.011NLTTR,553-PM2180.011NLTDKR
Standard Package 700
Win Source Part Number 1085363-PM2180.011NLT
Ultra Librarian 3D Model Ultra Librarian PM2180.011NLT CAD Model

Description

The 1085363-PM2180.011NLT is a pulse transformer that is used for isolation and data interface (encapsulated).

  • Package: tape & reel
  • Standard Package: 700
  • Mounting Type: SMD (SMT)
  • Dimension: 0.319" L x 0.280" W (8.10mm x 7.10mm)
  • Inductance: 1.02mH
  • Height-Seated: 0.200" (5.08mm)
  • MSL Level: 1 (unlimited)
  • ET (Volt-Time): 22VµS
  • Manufacturer: Pulse Electronics Power
