Same model may have multiple batches, images only for reference.

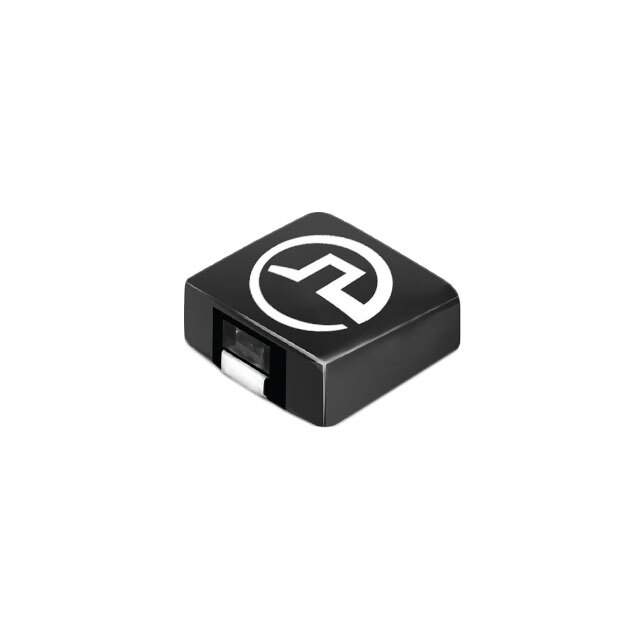

PG0255.601NLT Real Image
Same model may have multiple batches, images only for reference.

PG0255.601NLT

Part No PG0255.601NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 600NH 27A 1.87MOHM SMD / 600 nH Shielded Wirewound Inductor 27 A 1.87mOhm Max Nonstandard
Datasheet
PG0255.601NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG0255NL
Package Tape & Reel (TR)
Type Wirewound
Inductance 600 nH
Tolerance ±15%
Current Rating (Amps) 27 A
Current - Saturation (Isat) 28A
Shielding Shielded
DC Resistance (DCR) 1.87mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.453" L x 0.406" W (11.50mm x 10.30mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 850
Win Source Part Number 1171013-PG0255.601NLT
Ultra Librarian 3D Model Ultra Librarian PG0255.601NLT CAD Model

Description

The PG0255.601NLT is a fixed inductor that belongs to the PG0255NL series.

  • Product: PG0255.601NLT
  • Series: PG0255NL
  • The supply and demand status of this component is unlimited.
  • Manufacturer: Pulse Electronics Power
  • This component is suitable for use in various electronic devices.
  • Inductance: 600 nH
  • Current Rating: 27 A
