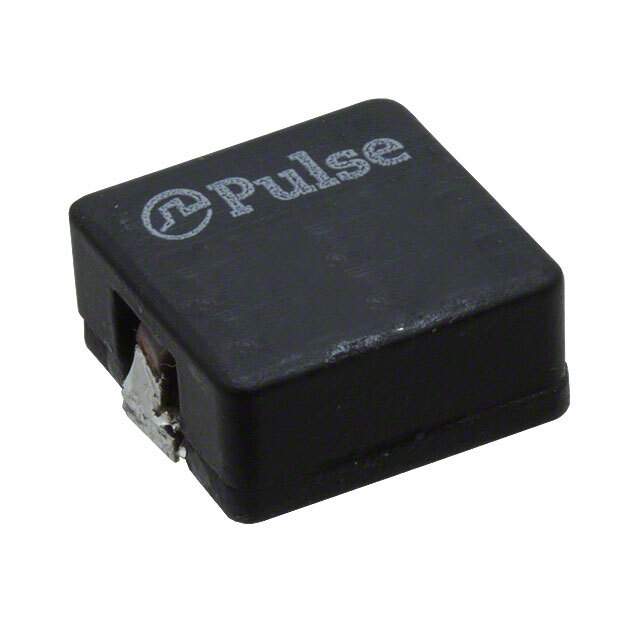

Same model may have multiple batches, images only for reference.

PG0077.401NLT

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PG0077.401NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 450NH 45A 0.8 MOHM SMD / 450 nH Unshielded Inductor 45 A 0.8mOhm Max Nonstandard
Datasheet	PG0077.401NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PG0077NL
Package	Tape & Reel
Inductance	450 nH
Tolerance	±20%
Current Rating (Amps)	45 A
Current - Saturation (Isat)	48A
Shielding	Unshielded
DC Resistance (DCR)	0.8mOhm Max
Temperature Range - Operating	-40°C ~ 95°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.551" L x 0.512" W (14.00mm x 13.00mm)
Height - Seated (Max)	0.256" (6.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-3855-6,553-3855-1,553-3855-2,PG0077.401NLT-ND
Standard Package	300
Win Source Part Number	1002425-PG0077.401NLT
Ultra Librarian 3D Model	Ultra Librarian PG0077.401NLT CAD Model

Alternative Products

Description

The PG0077.401NLT inductor from Pulse Electronics Power is an unshielded type, with a tape & reel package and a standard package of 300.

Shielding: Unshielded
Package: Tape & Reel
Standard Package: 300
Inductance: 450nH
Tolerance: ±20%
Dimensions: 0.551" L x 0.512" W (14.00mm x 13.00mm)
Height: 0.256" (6.50mm)
DC Resistance (DCR): 0.8mOhm
Current Rating: 45A
Temperature Range: -40°C to 95°C
ECCN: EAR99
